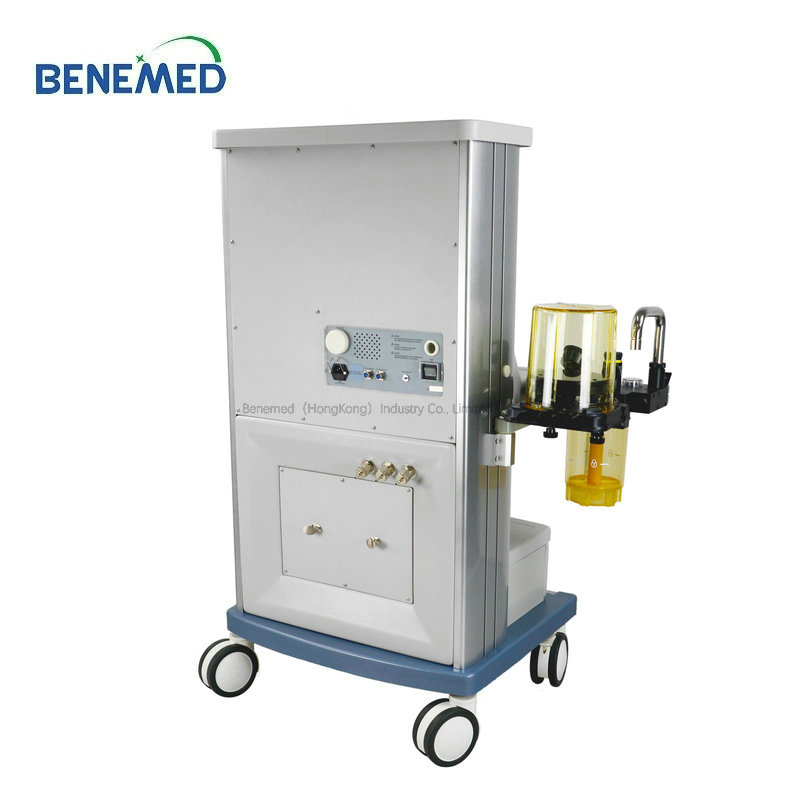

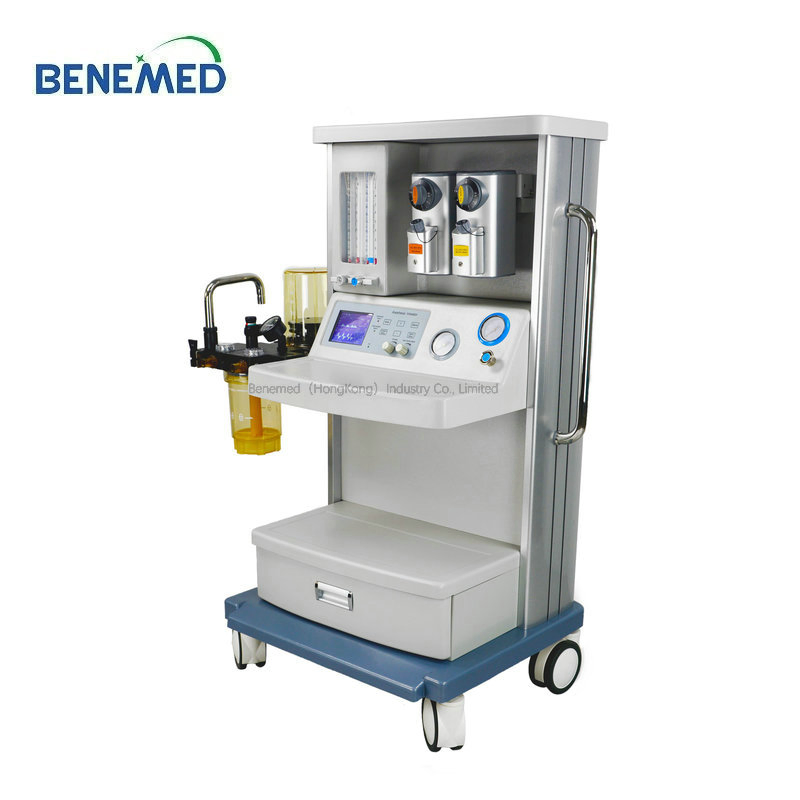

Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
1 / 5
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System
Professional Hospital Medical Clinic Surgery Equipment Anesthesia System

Professional Hospital Medical Clinic Surgery Equipment Anesthesia System

Customization: Available
Type: Anaesthesia Machine
Kind: Anesthesia Machine
Send Inquiry

Product Description

Anesthesia Machine for Surgery and ICU

Anesthesia System Main

Model: BM-A01B (ECONOMIC, STANDARD & ADVANCED MODELS)

Basic Specifications

Model NO.
BM-A01B ADV
LCD Display
5.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, IMV, SIMV, Manual
Back-up Power
At least 4 Hours
Respiratory Rate
1-99bpm
Oxygen Flow Rate
25~75L/Min
Vaporizer Range
0-5%
Origin
China
Capacity
1000 units/Month

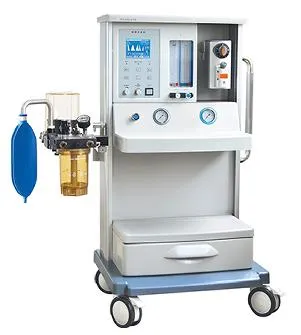

Standard Model

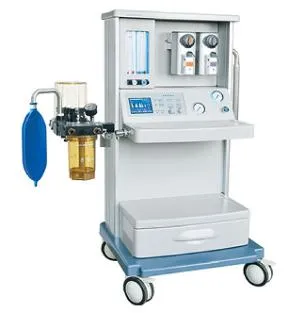

Advanced Model

Common Features

◈
Operating Modes: Pneumatically driven & electronically controlled; supports closed, semi-closed, and semi-open systems.
◈

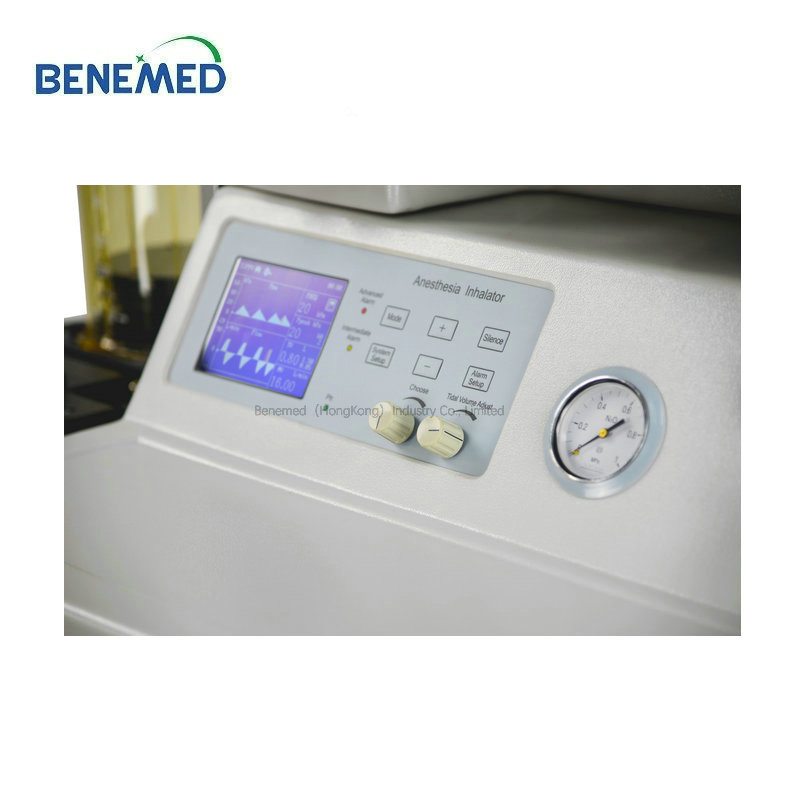

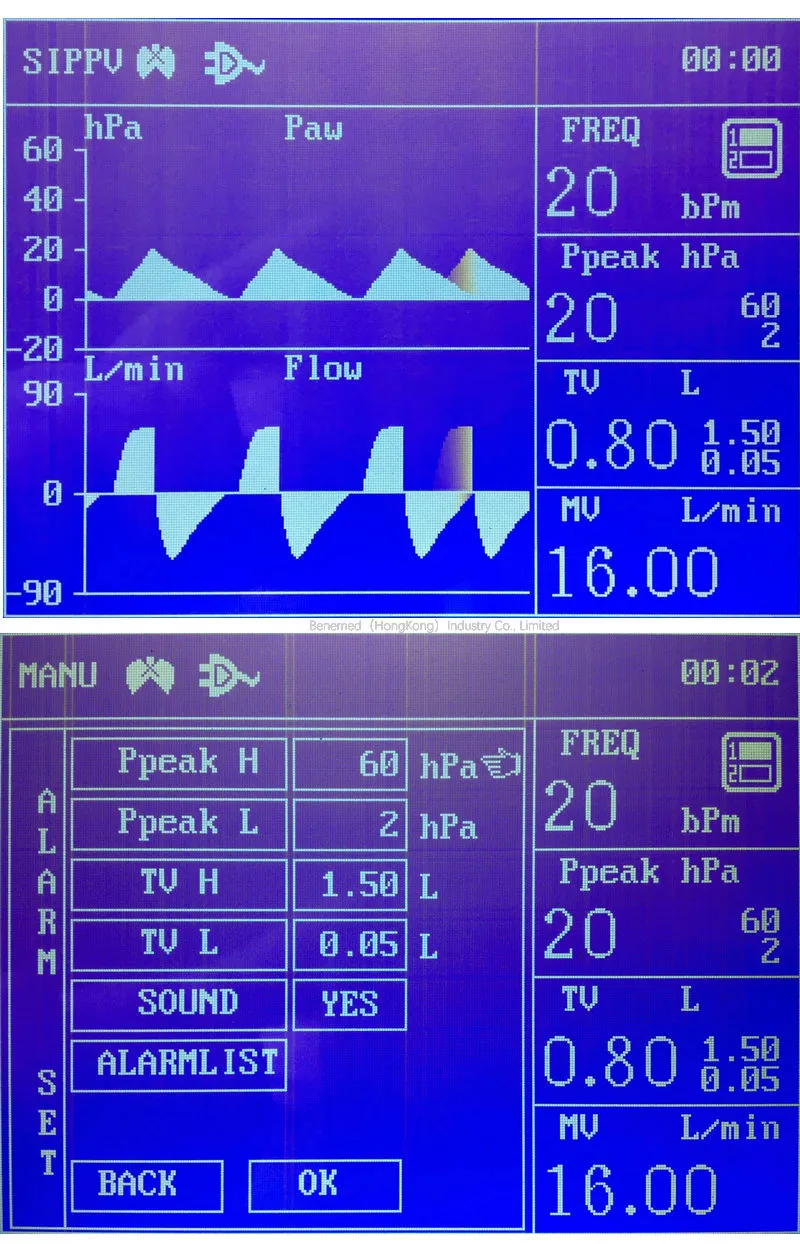

Anesthesia Ventilator: Built-in 5.4 inch TFT display showing Pressure-Time and Frequency-Time waveforms.
◈
Respiratory Circuit: Standard integrated metallic modular design; high-temperature disinfection compatible and easy to clean.
◈
Safety Design: Environmentally friendly frame with automated self-checking and self-calibrating sensors during startup.
◈
Flowmeter: High precision four-tube flowmeter with interlocking O2-N2O supply to guarantee oxygen ≥21%.
◈
Alarms: Audible and visual alarms for tidal volume, airway pressure, and power/oxygen failure.
◈
Vaporizer: Local assembly with imported components for Enflurane, Isoflurane, and Sevoflurane with self-compensation.

Advanced Model Exclusive Features

● Dual Tank Design: The vaporizer features a dual tank system, effectively extending surgical capability and providing interlocking tank functionality for complex procedures.

Technical Specifications Comparison

Parameter Economic Model Standard Model Advanced Model
Display 5.4 inch TFT display
Flowmeter Range O2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation Modes IPPV, SIPPV, IMV, SIMV, MANUAL
Tidal Volume Adjustable: 50-1500ml; Display: 0-2000ml
I:E Ratio 4:1 - 1:10 (Inverse ratio capable)
Vaporizer Slots Single PA-80 type Single PA-I type Double PA-I type

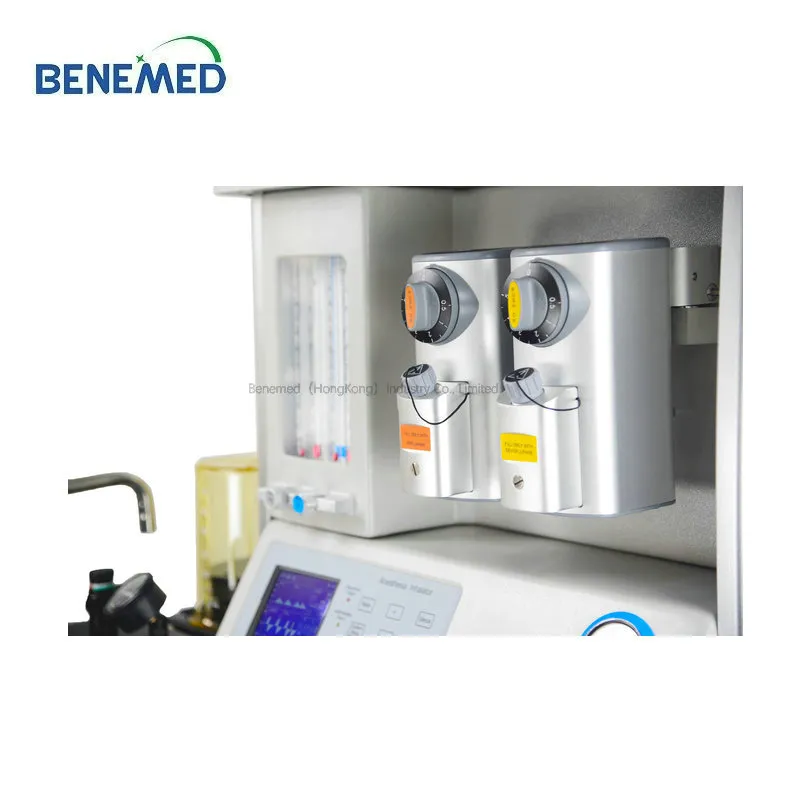

Part Detail 1
Part Detail 2

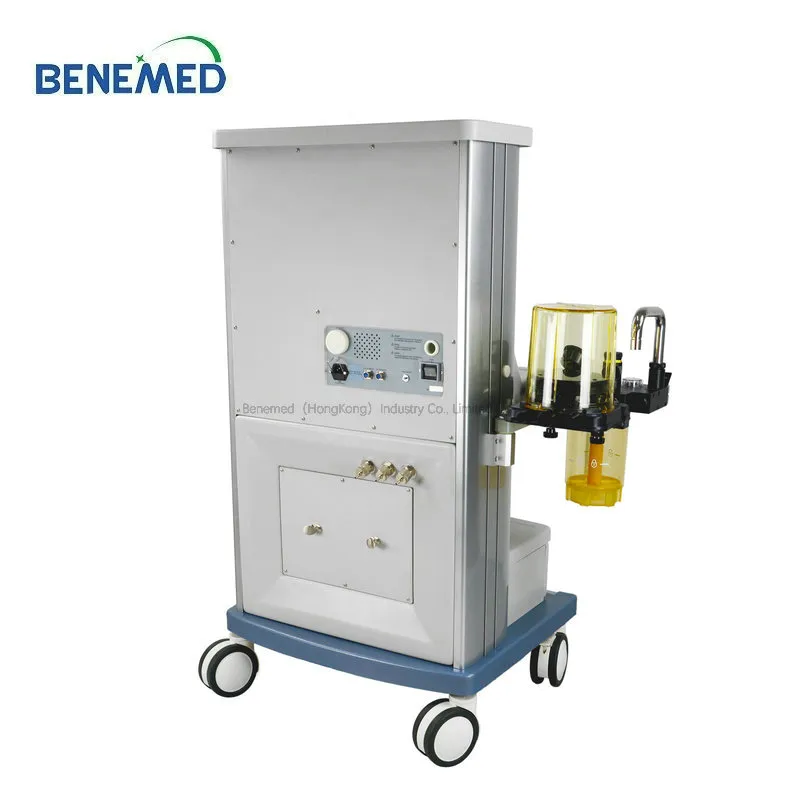

Part Detail 3

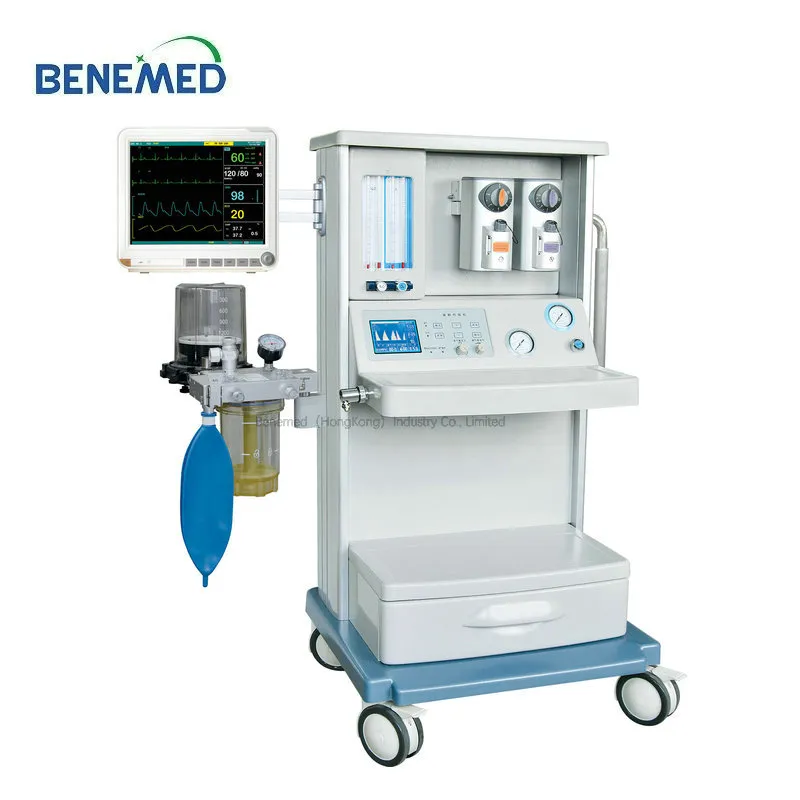

Part Detail 4

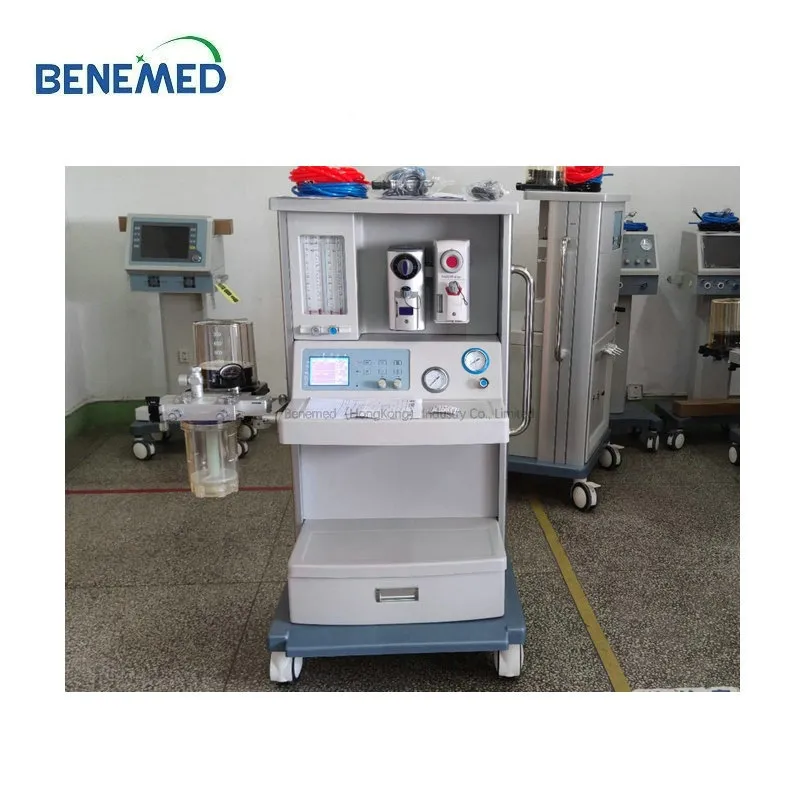

Part Detail 5
Full Unit
Dimensions and Chart

Frequently Asked Questions

What ventilation modes does the BM-A01B support?
The system supports multiple modes including IPPV, SIPPV, IMV, SIMV, and Manual ventilation to suit different clinical needs.
How long does the backup battery last during a power failure?
The built-in backup power supply is designed to provide at least 4 hours of continuous operation.
Does the machine have built-in safety alarms for oxygen supply?
Yes, if the oxygen supply falls below 0.20 MPa, an alarm will sound and the nitrous oxide will be automatically cut off to ensure patient safety.
What are the advantages of the integrated metallic respiratory circuit?
It provides excellent gas sealing under high-temperature disinfection (up to 134°C) and is modular for easy cleaning and maintenance.
Can the Advanced model handle long surgical procedures?
Yes, the Advanced model features a dual tank vaporizer design with interlocking capability, making it ideal for extended surgical operations.
What is the tidal volume range of this anesthesia system?
The adjustable tidal volume range is 50-1500ml, with a display range of up to 2000ml.
