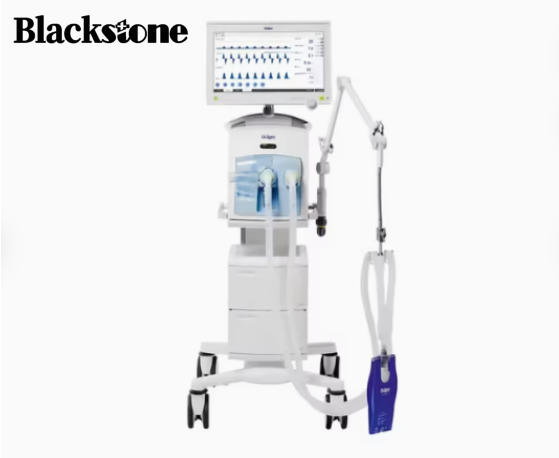

Intelligent Respiratory Support Ventilation System

Customization:	Available
Type:	Breathing
Function:	Breathing

Overview & Basic Info

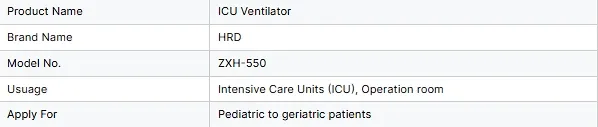

Model NO.	ZXH-550
Theory	Breathing
Certification	CE, ISO13485
LCD Display	With 10.4" HD LCD Display
Group	Adult
Product Name	Ventilator Machine
Work Mode	A/C, Simv, Psv, Pcv, Mmv, Ippv, Sigh, Ppep, CPAP
Tidal Volume	0-2000ml
Oxygen Concentration	Adjusting Range: 21%-100%
Trigger Pressure	-2 Kpa ~ 2kpa
Production Capacity	1000 Sets / Per Month
Origin	China

Product Description

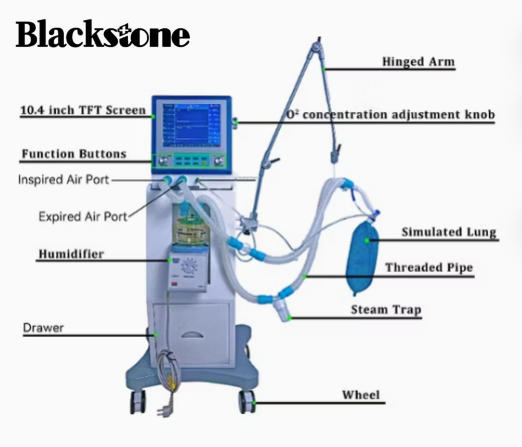

Pneumatic electric control with advanced microcomputer management.
Suitable for both invasive and non-invasive respiratory management.

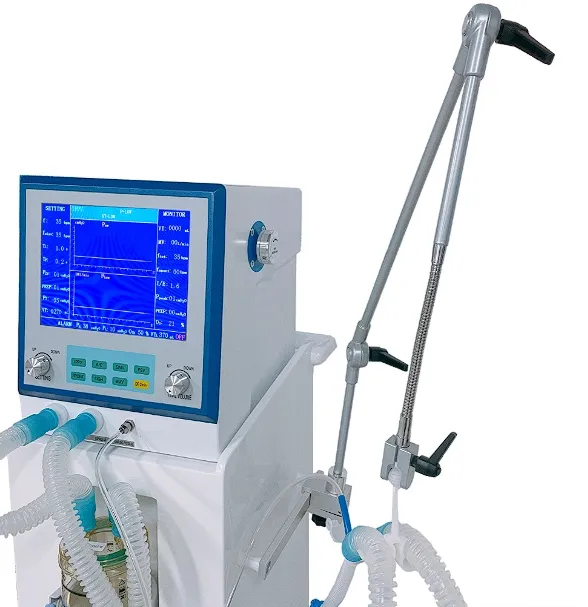

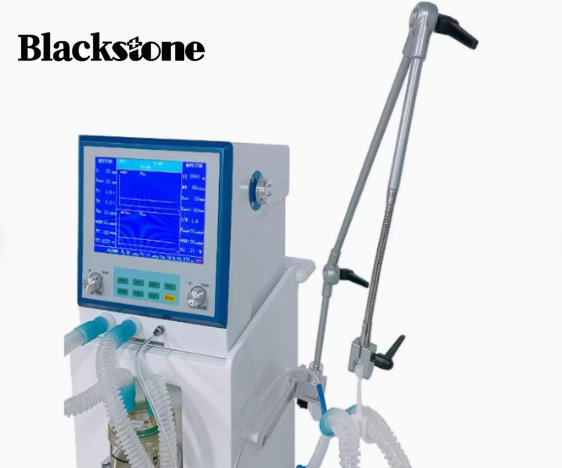

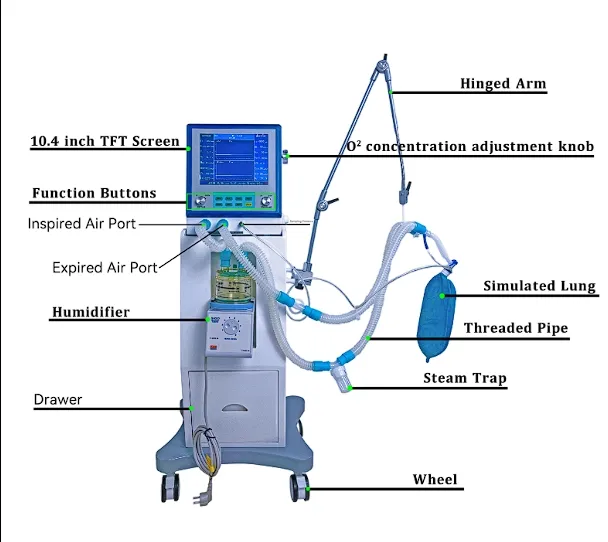

Equipped with a high-definition 10.4" LCD display for clear monitoring.
Humidifier temperature control adjustment with automatic over-temperature power-off protection.

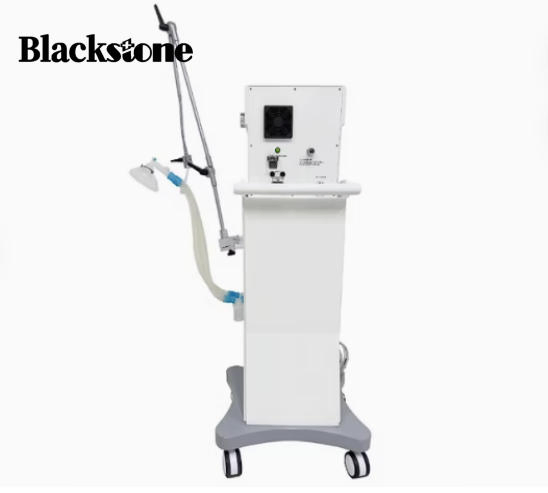

Includes a standard trolley for easy mobility within clinical environments.

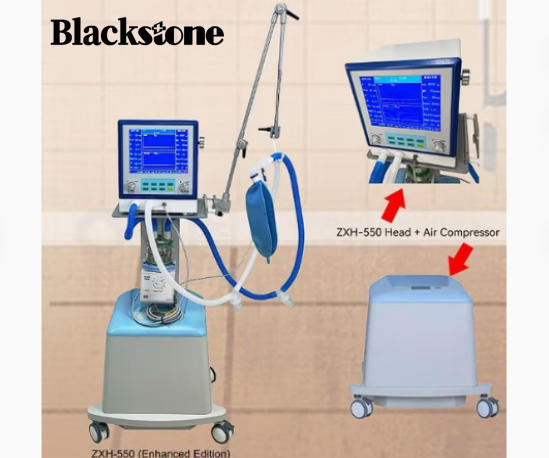

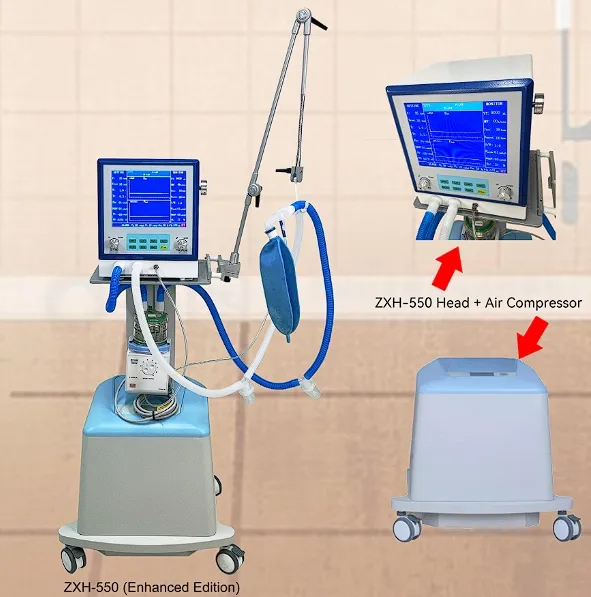

Optional air compressor and UPS backup power supply available.
Comprehensive monitoring: tidal volume, minute ventilation, respiratory rate, peak airway pressure, and P-T waveform.

Intelligent Respiratory Support Ventilation System

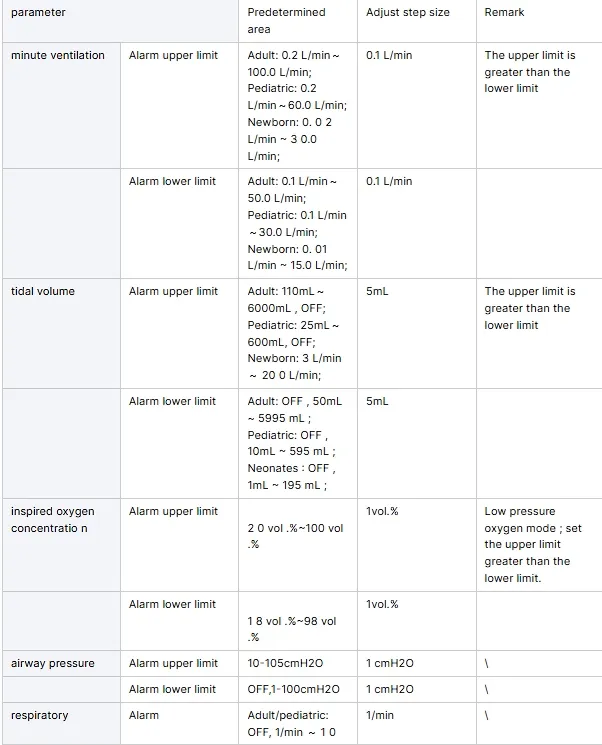

Technical Specification

Packing & Delivery

Selling Units	Single item
Single Package Size	55 X 65 X 120 cm
Single Gross Weight	62.000 kg
Package Type	Export Standard Wooden Case

Frequently Asked Questions

What patient types is the ZXH-550 ventilator designed for?

The ZXH-550 is specifically designed for adult patients requiring respiratory support in clinical environments.

Does this machine support non-invasive ventilation?

Yes, it is versatile and suitable for both invasive and non-invasive respiratory management.

What safety features are included for long-term use?

It features humidifier temperature control and an automatic power-off protection system to prevent over-temperature, ensuring patient safety during extended use.

Can I monitor the oxygen concentration and tidal volume?

Yes, the 10.4" HD LCD display provides real-time monitoring of tidal volume (0-2000ml), oxygen concentration (21%-100%), and various other respiratory parameters.

What are the power backup options for this ventilator?

The system supports an optional UPS backup power supply to ensure continuous operation during power fluctuations or failures.

How is the quality of the equipment guaranteed?

Our products undergo strict quality control, including pre-production sample evaluation and a final inspection before shipment, adhering to CE and ISO13485 standards.
