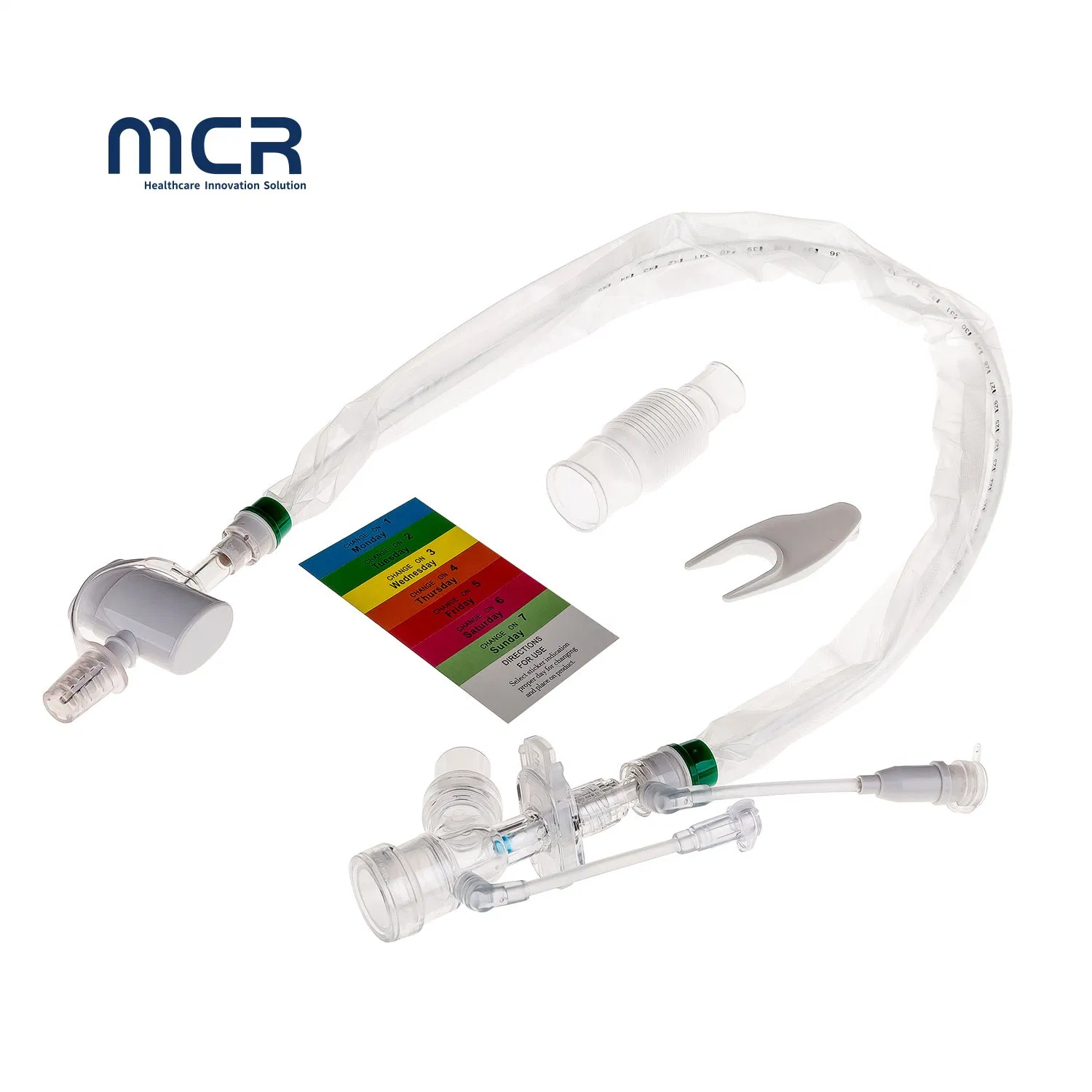

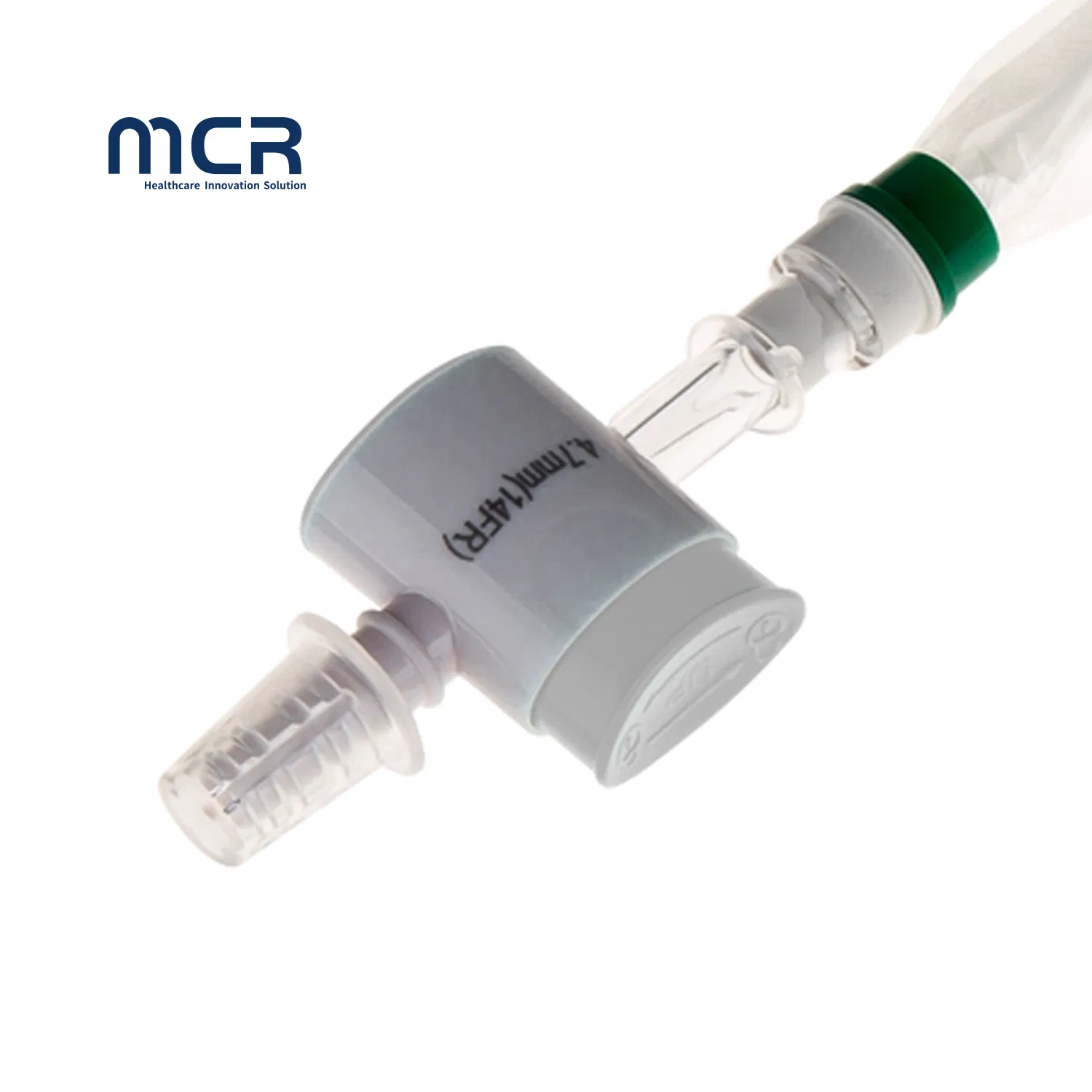

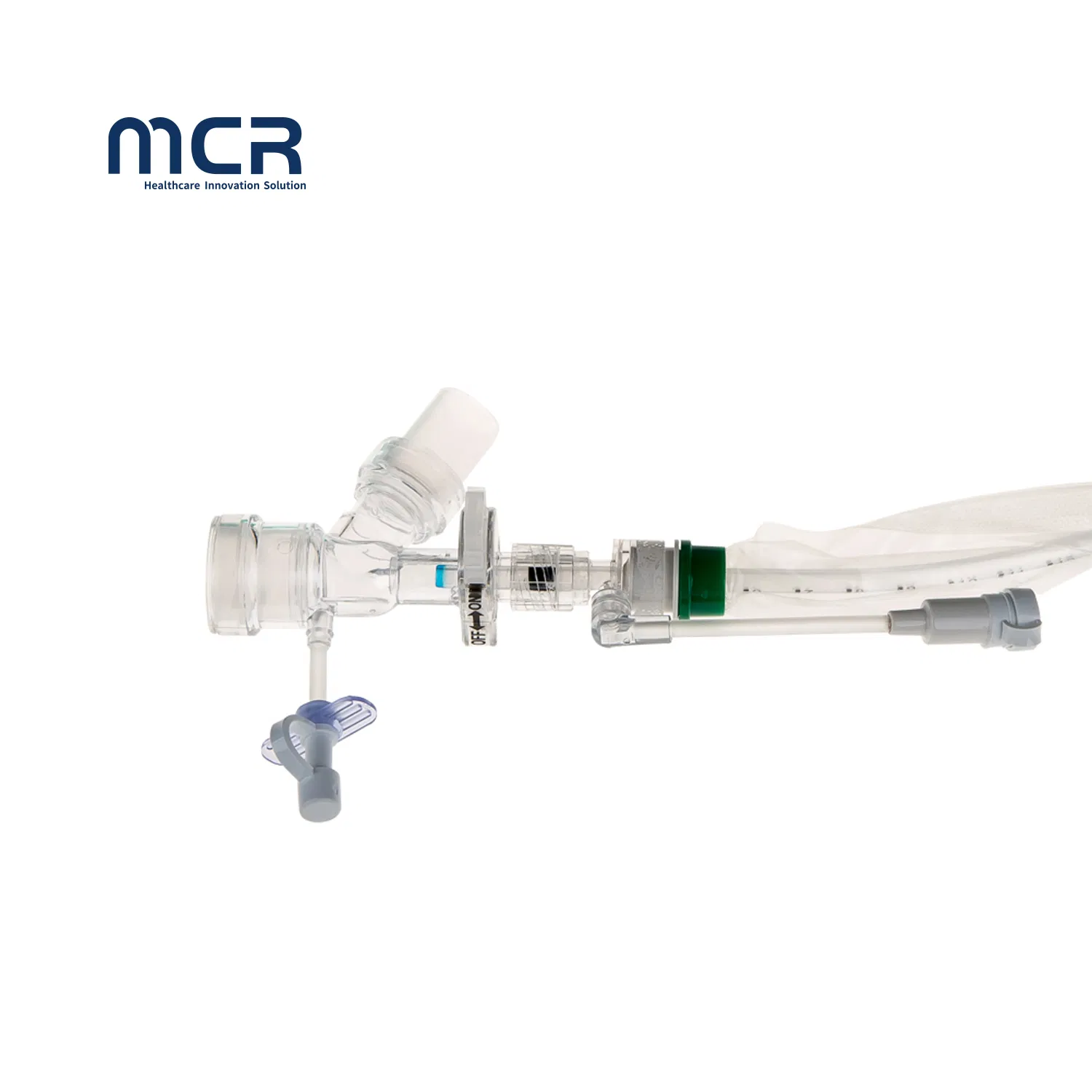

Popular Medical Product 24/72 Hours Closed Suction System Y Type

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
10FR, 12FR, 14FR, 16FR
Sterilization
Ethylene Oxide Sterilization
Guarantee Period
5 years
Group
Adult
Logo Printing
With or Without Logo Printing
Sample
Free for 2PCS
Type
24h/72h/Child
Category
Anesthesia
Origin
China
Production Capacity
480,000 PCS/Year

Product Description

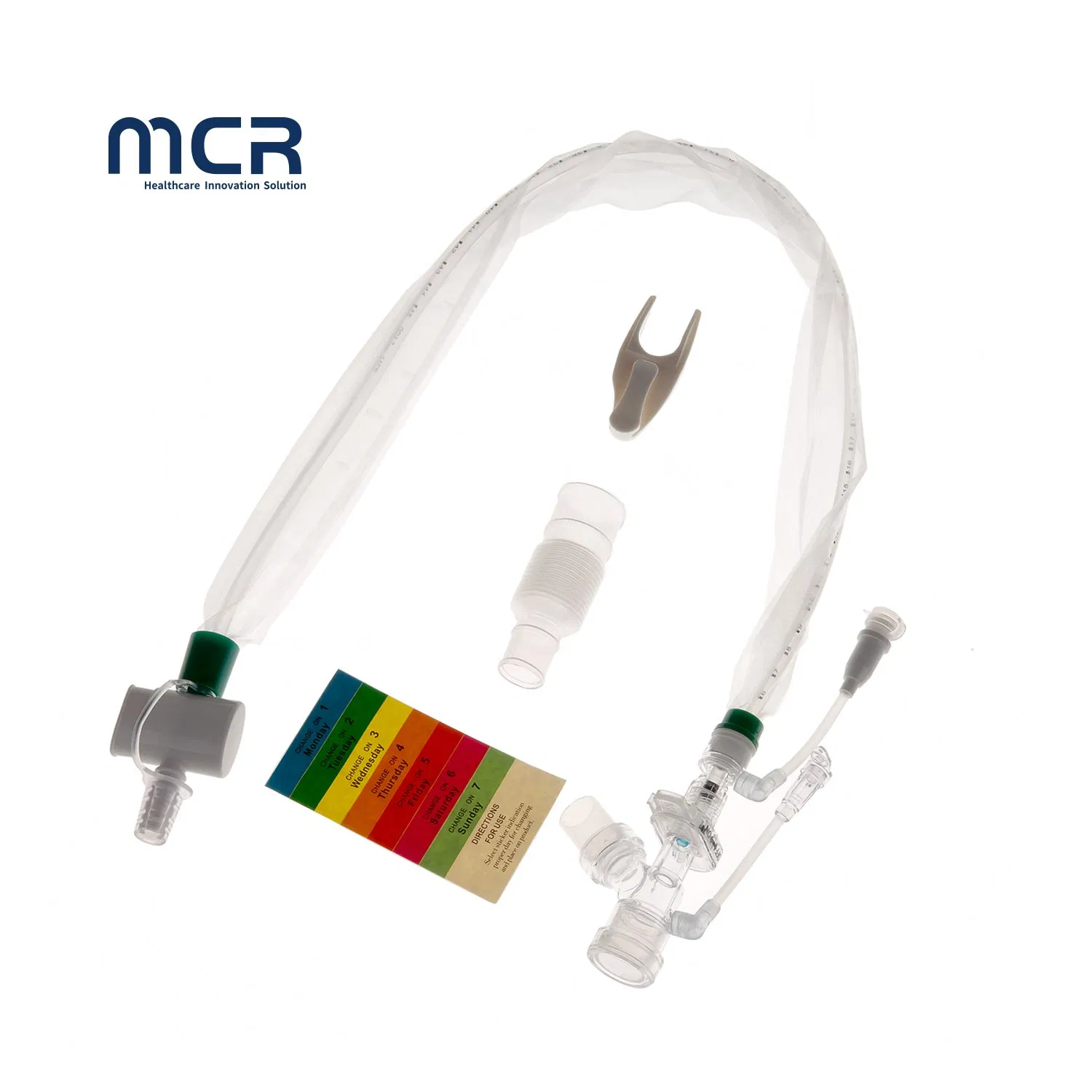

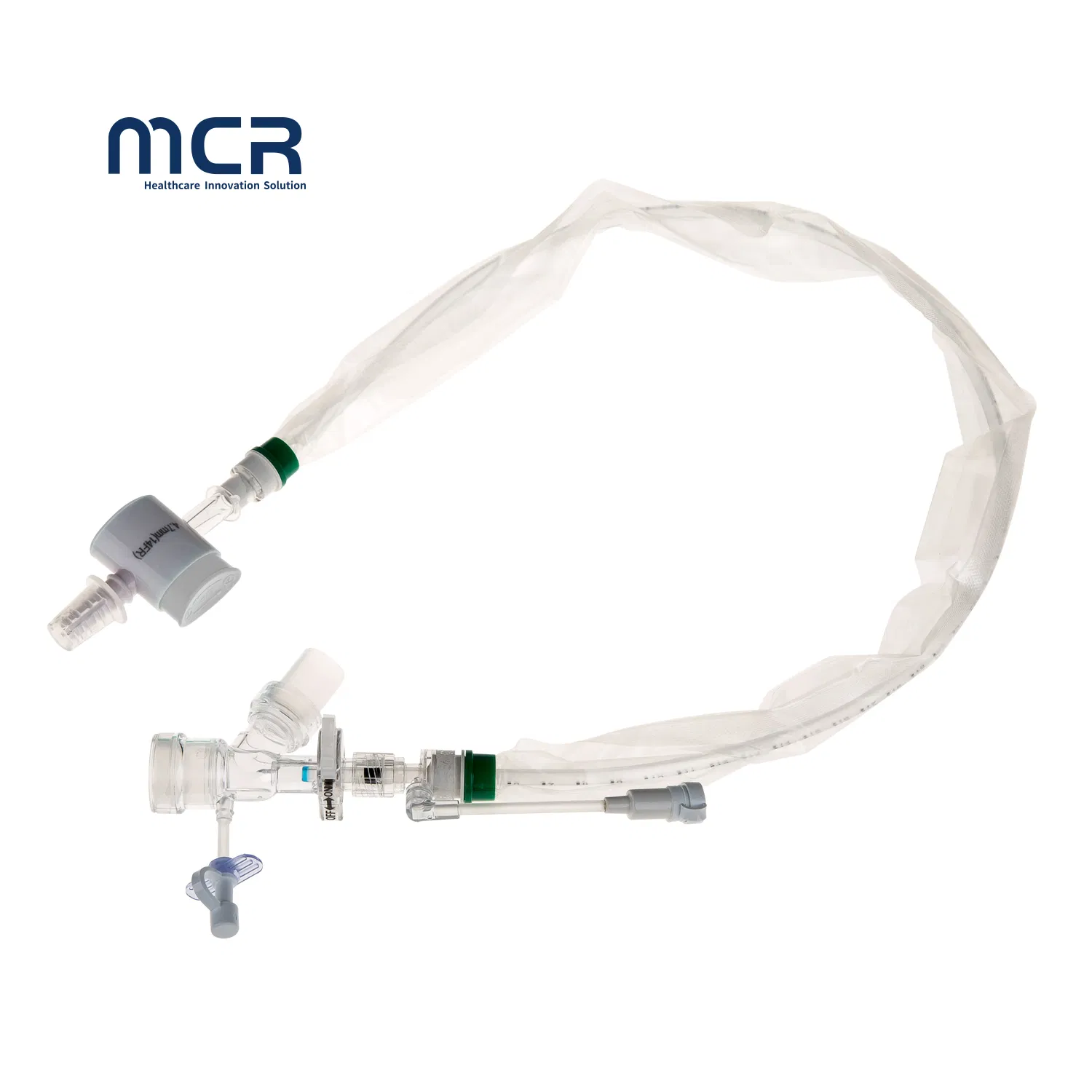

Popular Medical Product 24/72 Hours Closed Suction System Y Type

The smart design of the Closed Suction Catheters allows the patients' breath-mechanical ventilation and suctioning simultaneously. Equipped with a push switch and Luer lock, this design keeps breathing steady while isolating the turbulent cleaning chamber. It prevents spray back, significantly reducing the risk of VAP (ventilator-associated pneumonia) for ventilated patients. The protective sleeve isolates germs, helping caregivers avoid cross-infection.

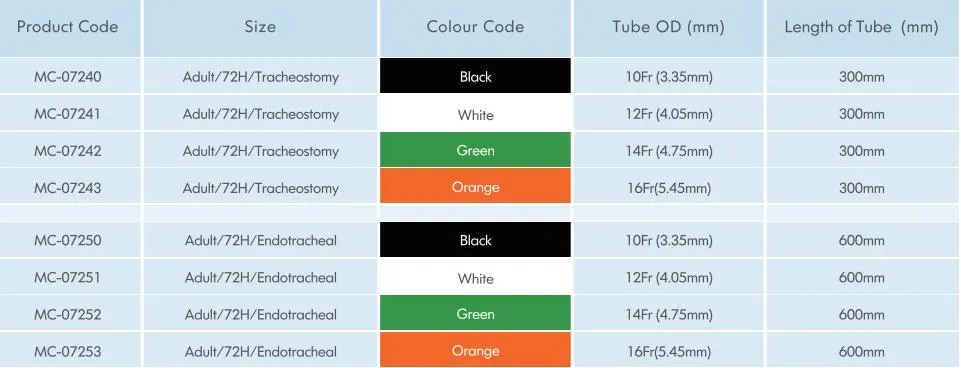

Technical Specifications

Key Features

Continuous Breathing Simultaneously ventilation supported during procedures.
Soft Blue Suction Tip Reduces damage to the patient while suctioning; easier for irrigational cleaning.
Double Swivel Connector 15mm connector of Double Swivel for flexibility.
Disconnecting Wedge Equipped with both disconnecting and clipping functions.
Universal Compatibility Designed for both endotracheal and tracheostomy tube use with various lengths available.
Cross Infection Prevention Protective sleeve isolates bacteria to protect both patients and caregivers.

Instructions for Use

Set up Procedure
  1. Inspect the product before use. Do not use if package is damaged.
  2. Connect the Endotracheal/Tracheostomy Tube to the Revolvable adapter.
  3. Connect ventilator tube to the Revolvable Ventilator Connector.
  4. Ensure the cap of the MDI Port/irrigation Port is closed before suctioning.
  5. Slide the on-off valve to the open position to allow catheter entry.
Suctioning Procedure
  • Grip the three-way adaptor and feed the catheter to the required depth using markers.
  • Depress the vacuum control valve to apply suction once in position.
  • Remove the suction catheter until the protective sleeve is straight.

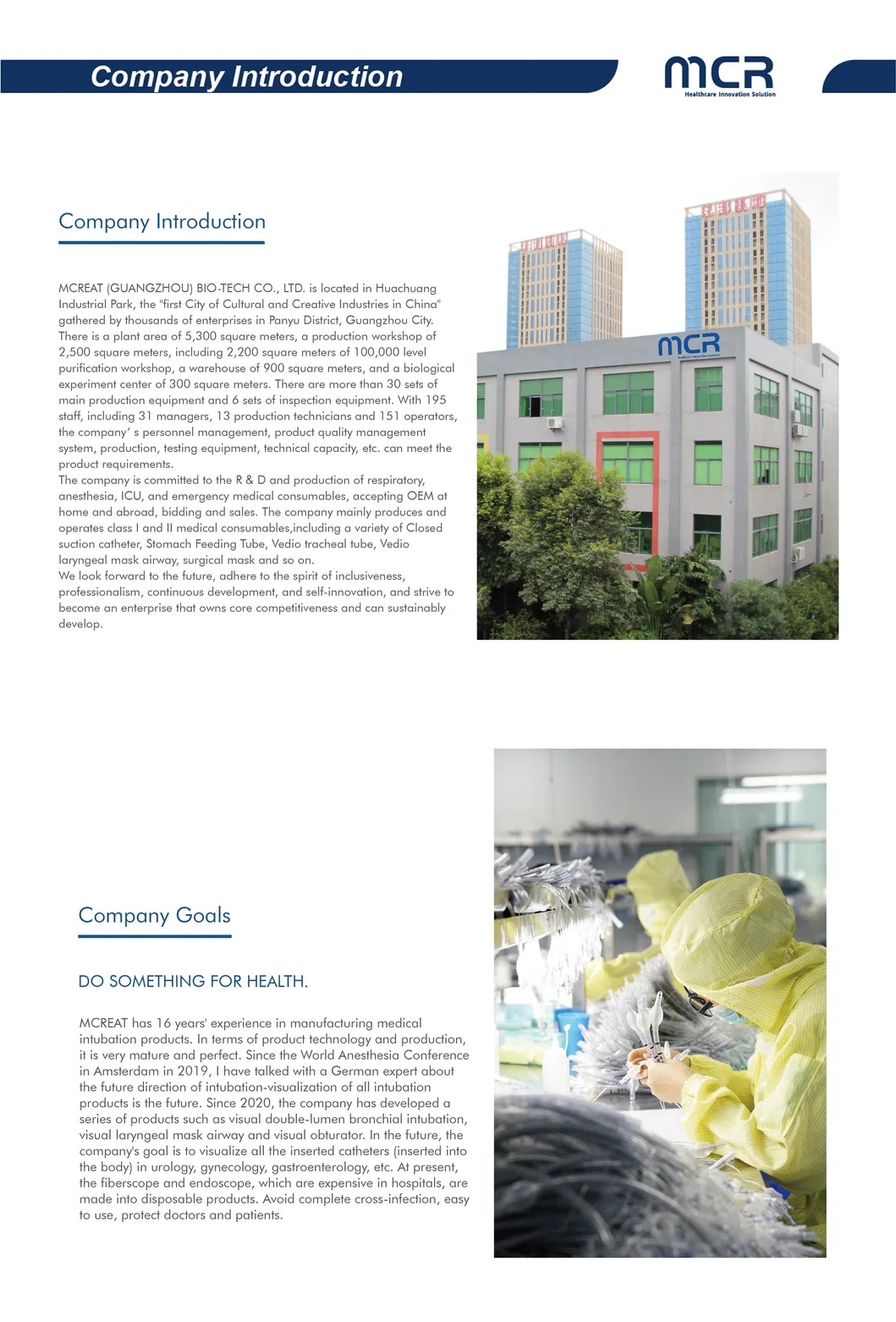

Professional Manufacturing

With 16 years of experience in manufacturing medical intubation products, our production technology is mature and highly specialized. We focus on the future of medical intubation, emphasizing the visualization of inserted catheters in fields such as urology, gynecology, and gastroenterology. Our goal is to provide disposable solutions that avoid cross-infection and simplify usage for doctors and patients.

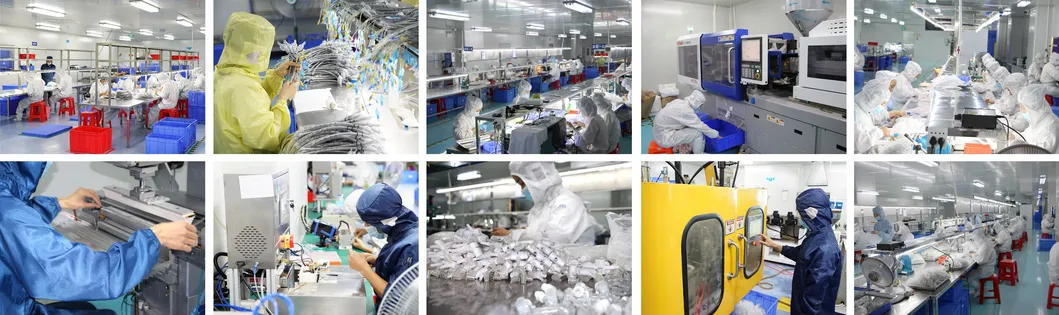

Manufacturing process detail
Product quality certificates

Frequently Asked Questions

Q1: Do you provide samples for testing?
Yes, we can provide samples for free (usually 2PCS). Please contact us if you need to evaluate the product quality.
Q2: What is the quality warranty period for the suction system?
We provide a 4-5 years quality guarantee period for our medical intubation products.
Q3: How long is the standard delivery time?
Generally, the delivery time is approximately 30 days, though it may vary based on the specific order quantity.
Q4: Which quality certifications do your products hold?
Our main products are approved with CE0123, ISO13485, CFDA, and FDA certifications.
Q5: Can the products be customized to our requirements?
Yes, we have a dedicated R&D team for new product innovation and can support customization to meet your goals.
Q6: How is the after-sales service managed?
We maintain a strict Q&A system and take full responsibility for after-sales support to ensure customer satisfaction.
