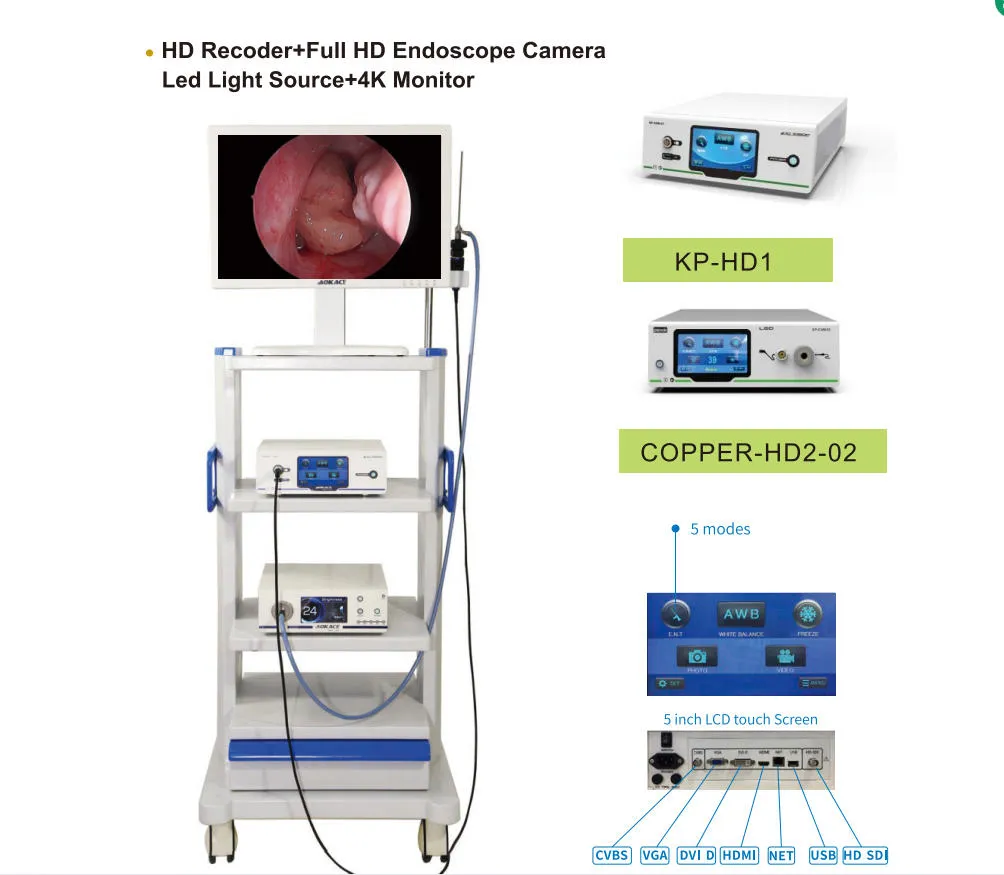

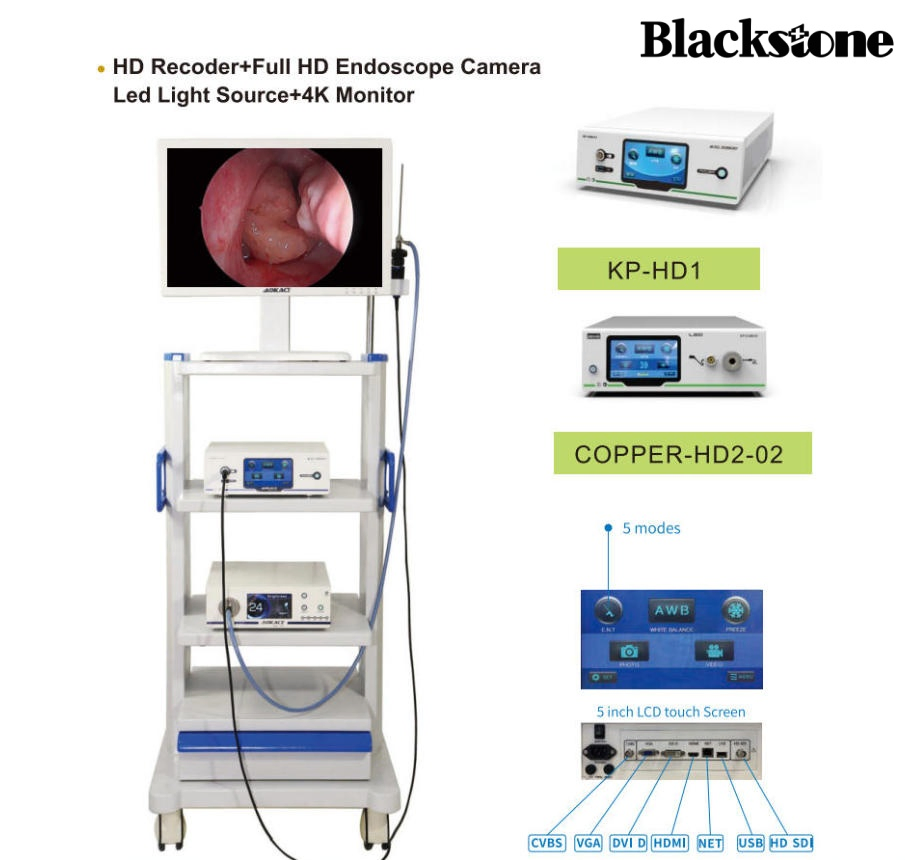

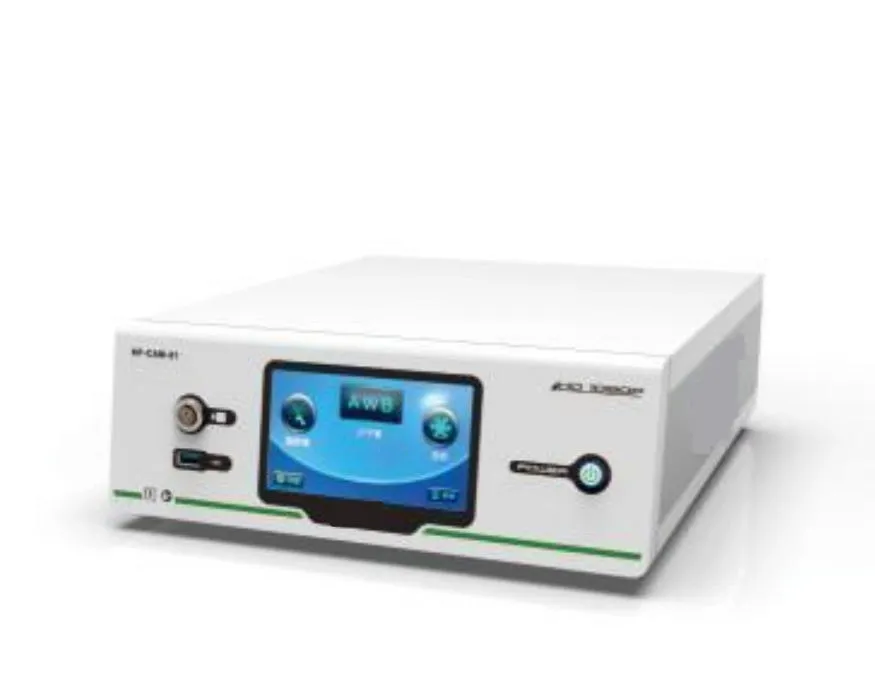

Medical Equipment Endoscope 4K Fluorescence Camera System
1. Resolution ≥3840×2160 pixels (aspect ratio 16:9).
2. Excellent photosensitive performance and SNR via 4K UHD 4CMOS image sensor.
3. 4K dedicated optical lens for various surgical needs.
4. Electronic magnification and real-time image adjustment via camera buttons.
5. Customizable button functions for ergonomic intraoperative use.
Offers versatile imaging including:
- High-definition white light imaging
- Black and white fluorescence imaging
- Green fluorescence imaging
Provides critical data on tissue perfusion, lymphatic drainage, and abnormal structures for precise surgeries.
Following the ITU "Ultra High Definition UHD" standard, this system provides 3840x2160 resolution, delivering four times the detail of standard 1080p FHD.

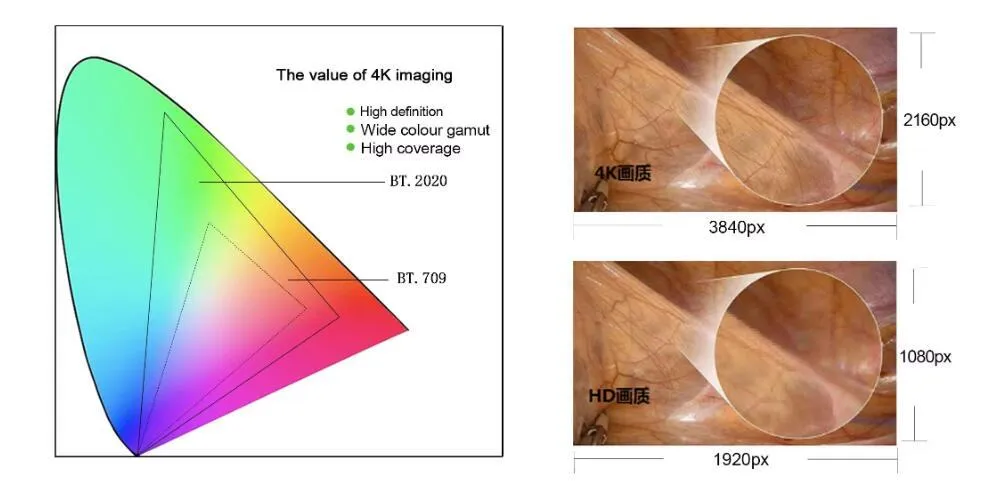

The BT.2020 color standard allows for superior discrimination of tissue boundaries such as fat, nerve, and vascular junctions, enabling clearer observation of small blood vessels.
| Camera Sensor | 9,000,000 pixels 4*1/2.8" CMOS |
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Minimal Illumination | 0.5 Lux |
| Video Output | HDMI 2.0 / 3G-SDI (4K UHD output) / DVI / USB 3.0 |
| Shutter Speed | 1/60~1/60000(NTSC), 1/50~50000(PAL) |
| Handle Cable | 2.8m (Customizable) |
| Power Supply | AC220/110V ±10% |
| Signal-to-Noise Ratio | > 50dB |
| Language Support | Chinese, English, Russian, Japanese, Spanish |
| Scanning System | Line by line scanning |
| Clinical Applications | Thoracic surgery, Urology, Hepatobiliary, Gastrointestinal, Gynecology |
