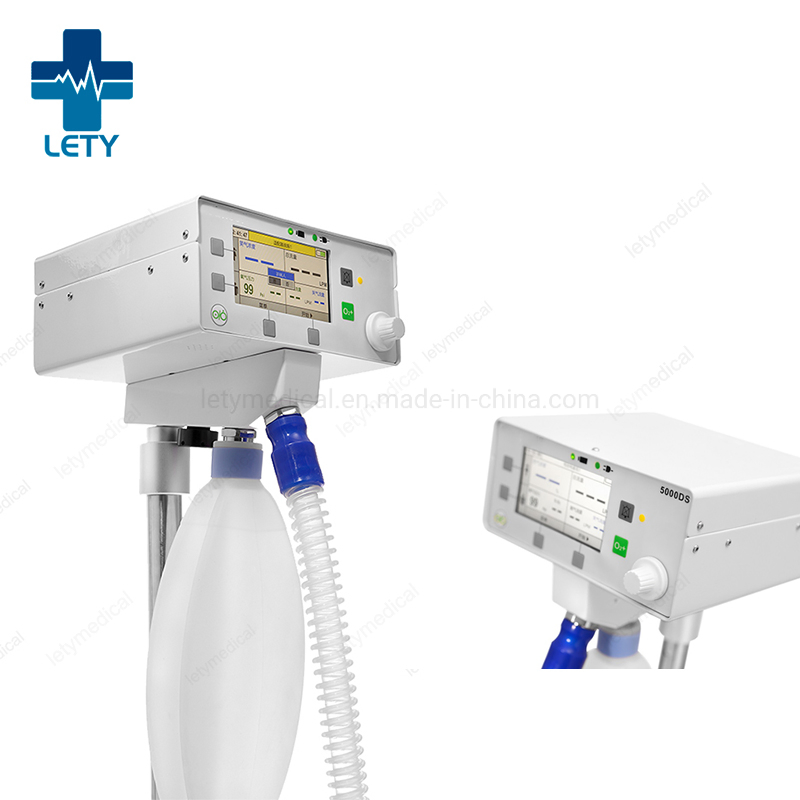

Digital Display Nitrous Oxide Sedation Systems with Alram

1 / 5

Digital Display Nitrous Oxide Sedation Systems with Alram

Customization:	Available
Applicable Departments:	Oral Surgery
Certification:	CE

Send Inquiry

Product Description

Basic Information

Model NO.

LTD-5000Ds

Type

Nitrous Oxide Sedation System

Material

Metal

Maximum Total Flow

≥17L/Min

Precise Flow

Min 0.5L

N2O Range

0-70%

O2 Range

30%-100%

Input Pressure

50psi±10%

Input Link

Standard 5/8' Diss

Patient Output

15/22mm

Safe Valve

Automatic on/off N2O

Production Capacity

1000 units/Month

Product Description

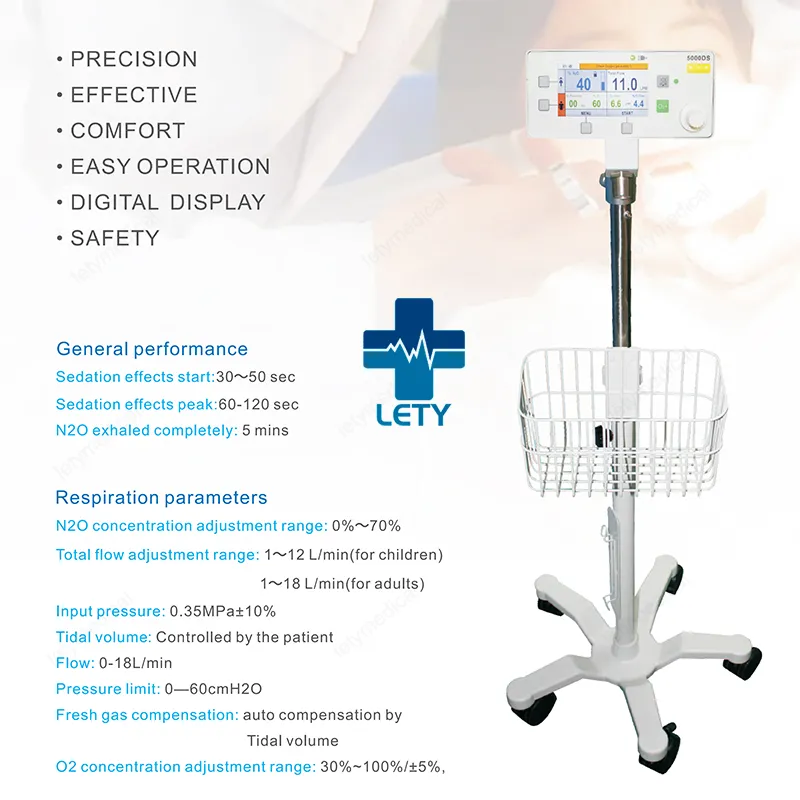

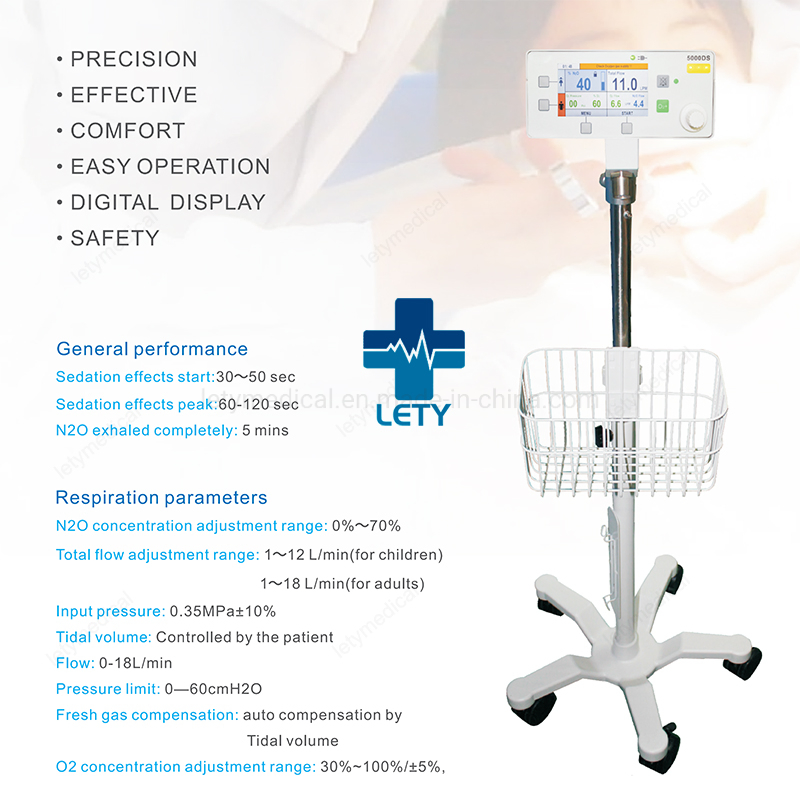

Digital display Nitrous oxide sedation systems with alarm

PRECISION

EFFECTIVE

COMFORT

EASY OPERATION

DIGITAL DISPLAY

SAFETY

General Performance

Sedation effects start: 30~50 sec
Sedation effects peak: 60-120 sec
N2O exhaled completely: 5 mins

Respiration Parameters

N2O concentration adjustment range: 0%~70%
Total flow adjustment range: 1~12 L/min (children) / 1~18 L/min (adults)
Input pressure: 0.35MPa±10%
Tidal volume: Controlled by the patient
Pressure limit: 0-60cm H2O
O2 concentration adjustment range: 30%~100% / ±5%

Key Features & Configuration

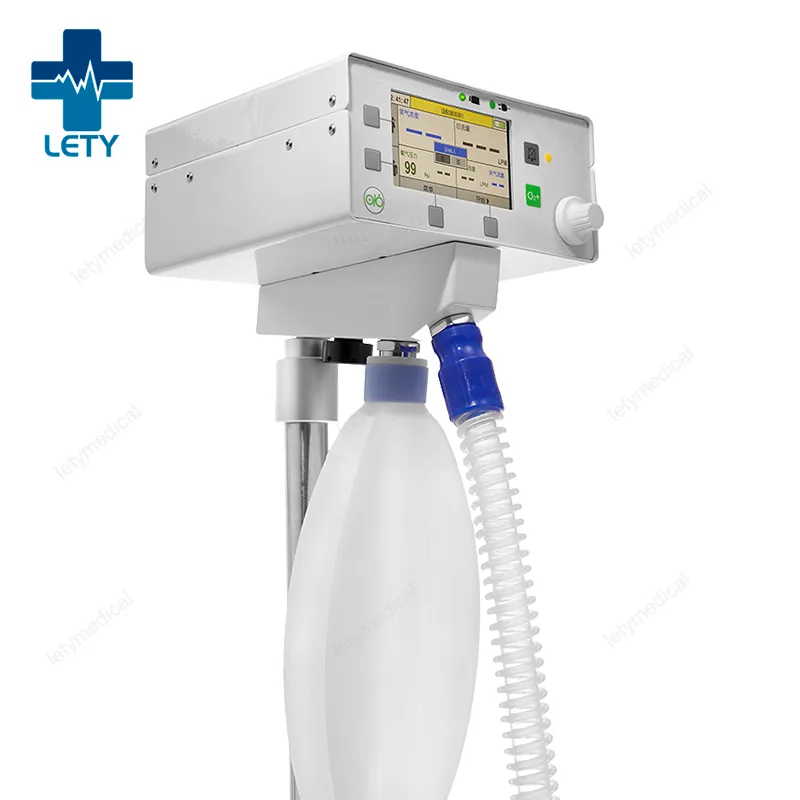

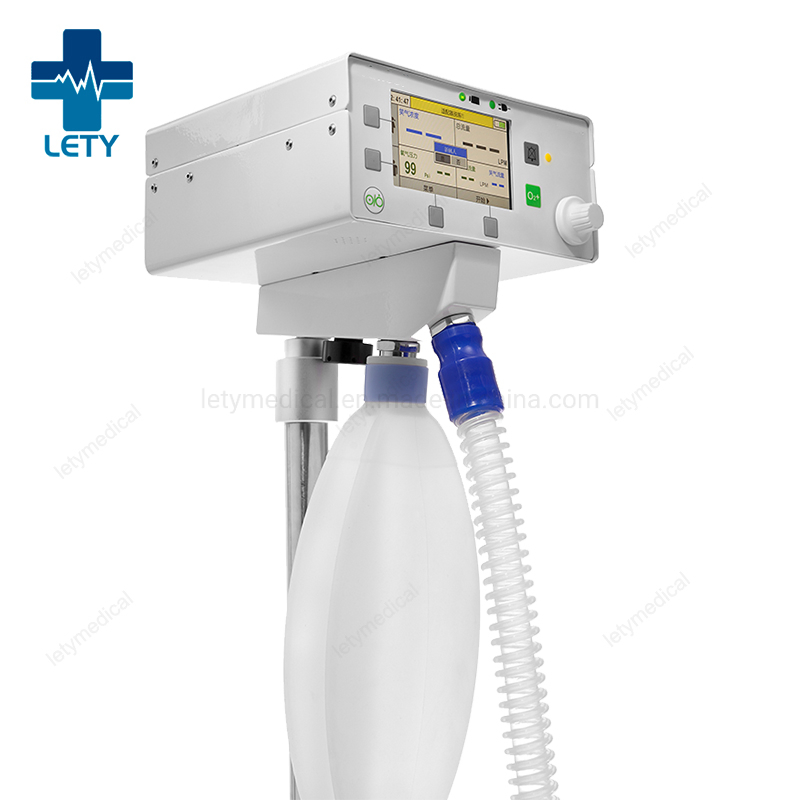

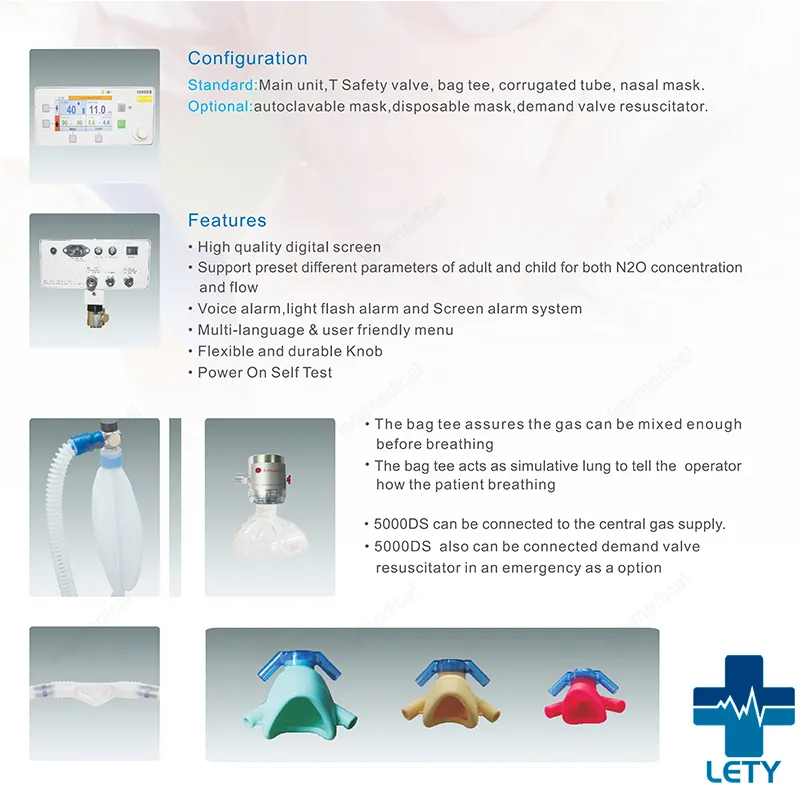

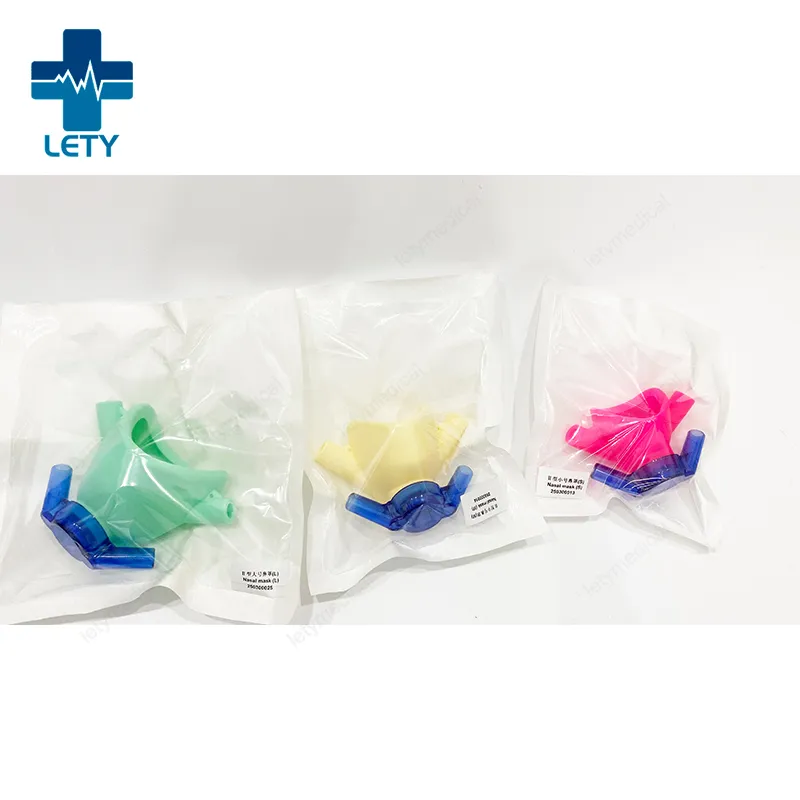

Configuration: Standard: Main unit, Safety valve, bag tee, corrugated tube, nasal mask. Optional: autoclavable mask, disposable mask, demand valve resuscitator.

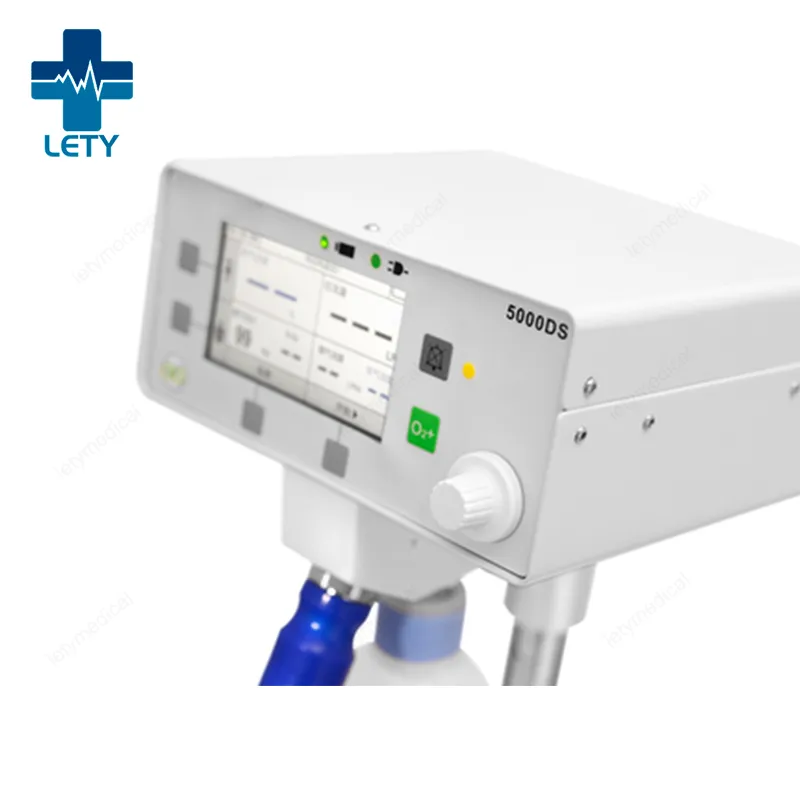

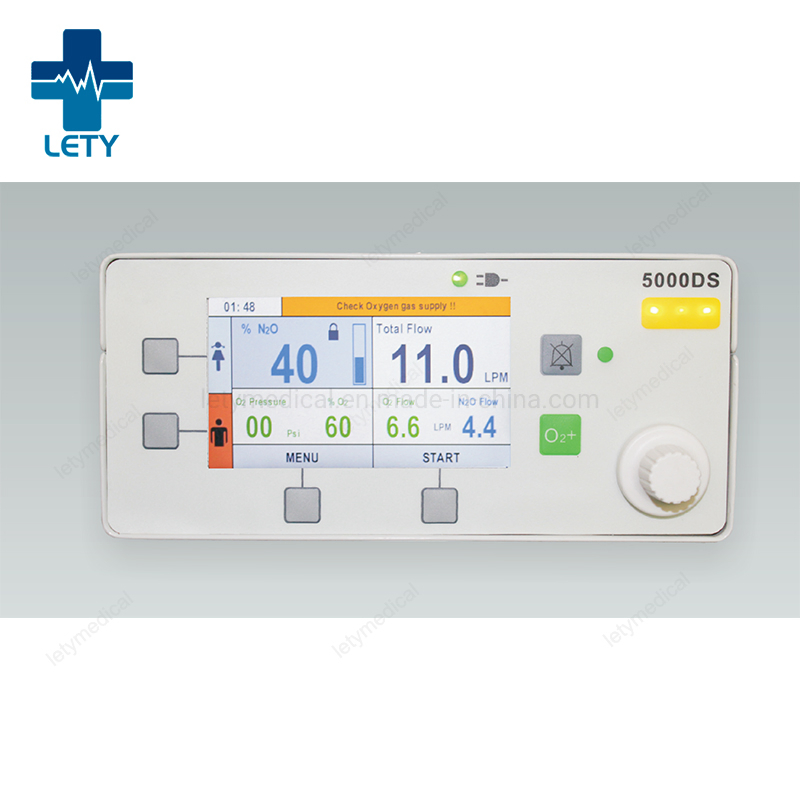

🔹 High quality digital screen: Support preset different parameters for both N2O concentration and flow.
🔹 Triple Alarm System: Voice alarm, light flash alarm, and Screen alarm system.
🔹 User Friendly: Multi-language menu and flexible, durable control knob.
🔹 Safety First: Power On Self Test and bag tee acting as a simulative lung to monitor breathing.

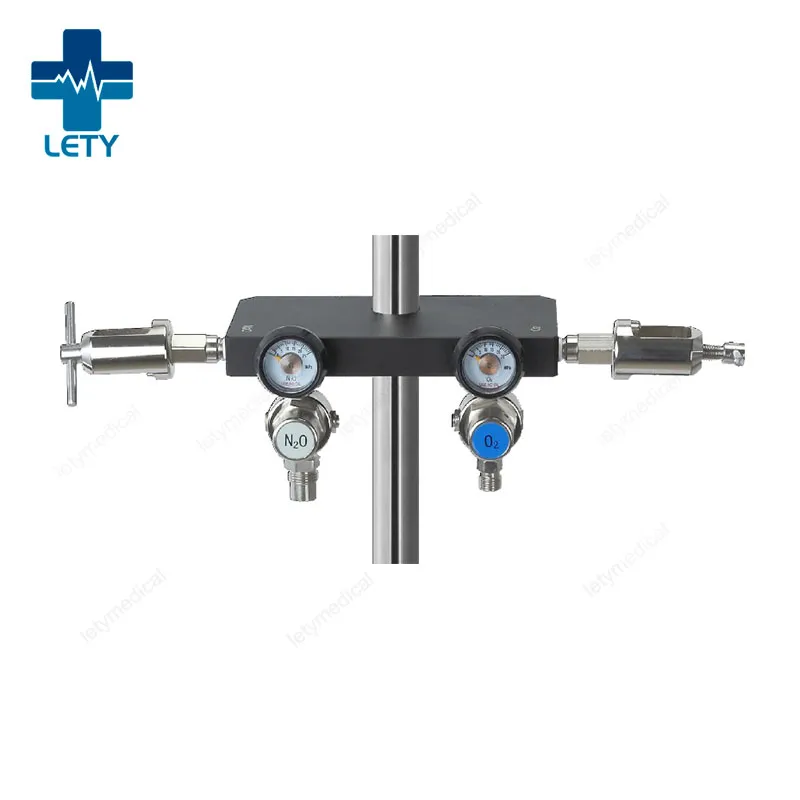

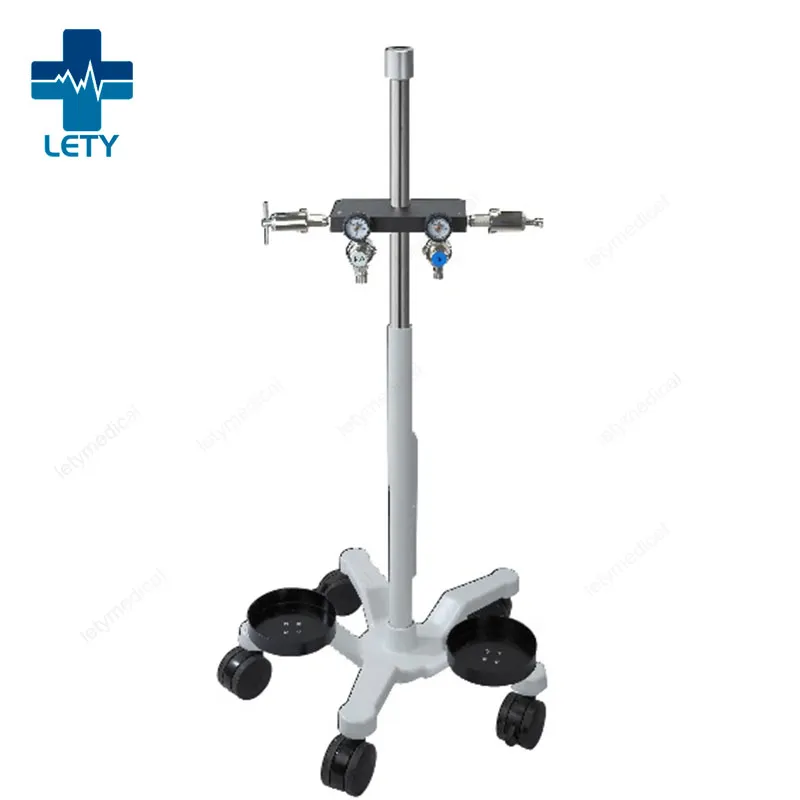

🔹 Versatile Connection: Can be connected to central gas supply or demand valve resuscitator in emergencies.

Frequently Asked Questions

Q: How quickly does the sedation effect take place? A: The sedation effects typically start within 30 to 50 seconds, reaching their peak between 60 and 120 seconds.

Q: What is the adjustable range for Nitrous Oxide (N2O)? A: The N2O concentration can be precisely adjusted from 0% to 70% to suit the patient's needs.

Q: Does the system support different settings for adults and children? A: Yes, the digital screen supports preset parameters for both adults (1-18 L/min flow) and children (1-12 L/min flow).

Q: What safety alarms are integrated into the LTD-5000Ds? A: The system features a comprehensive triple alarm system including voice alarms, light flash alarms, and on-screen alerts.

Q: Can this system be connected to a central gas supply? A: Yes, the 5000DS model is designed to be compatible with central gas supply systems.

Q: How long does it take for the N2O to be completely exhaled? A: Once the procedure is finished, the N2O is typically exhaled completely from the patient's system within 5 minutes.
