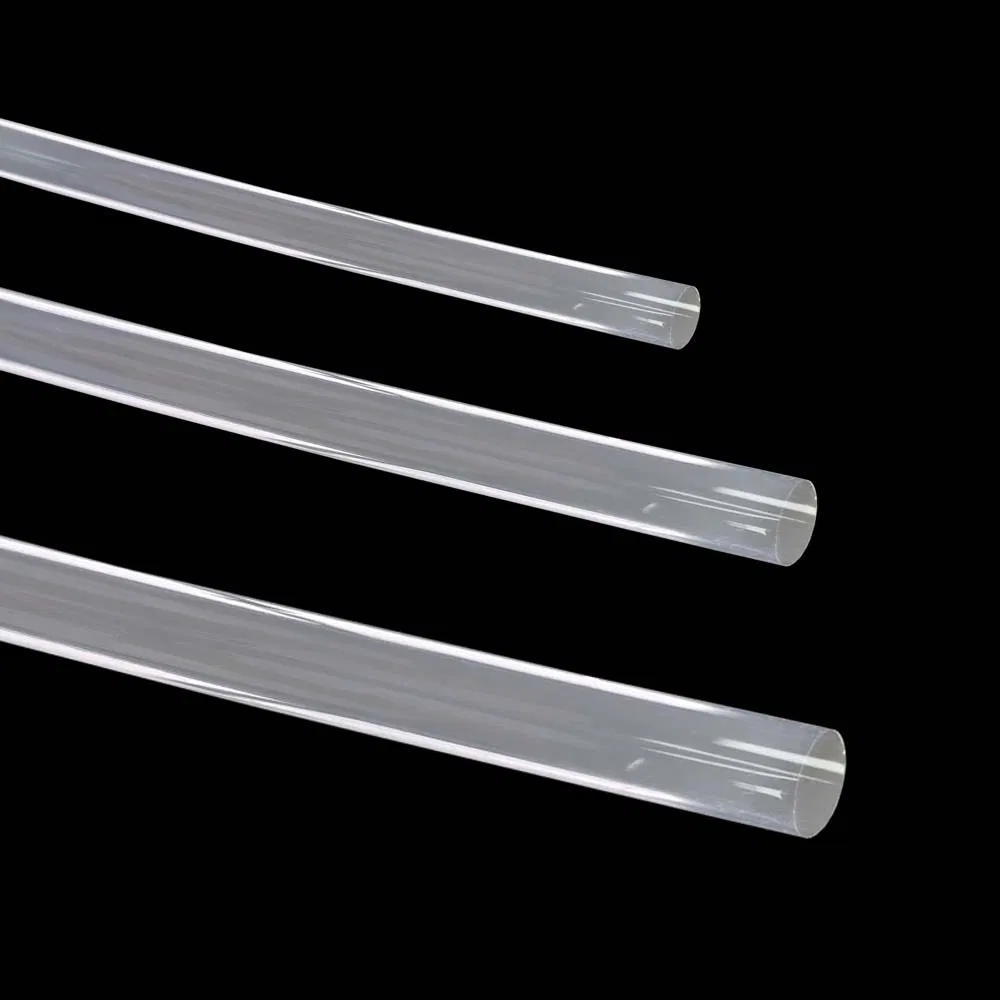

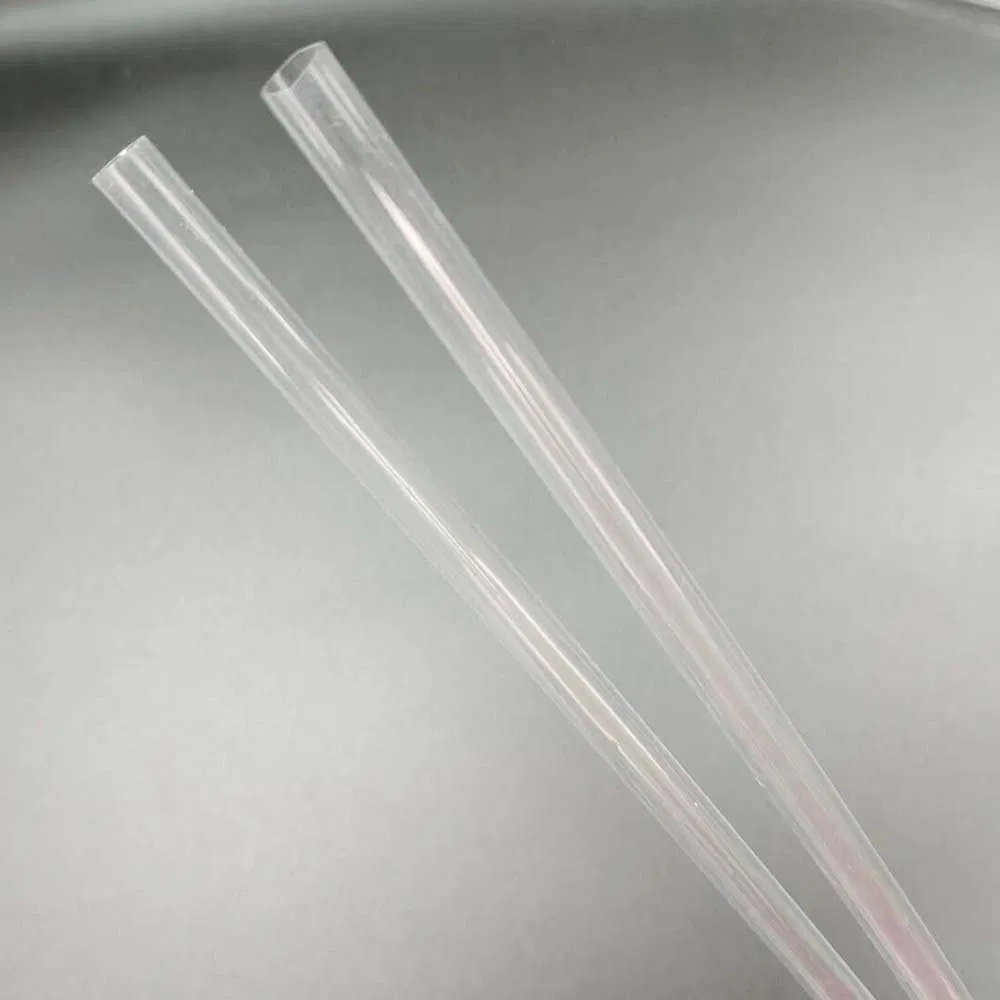

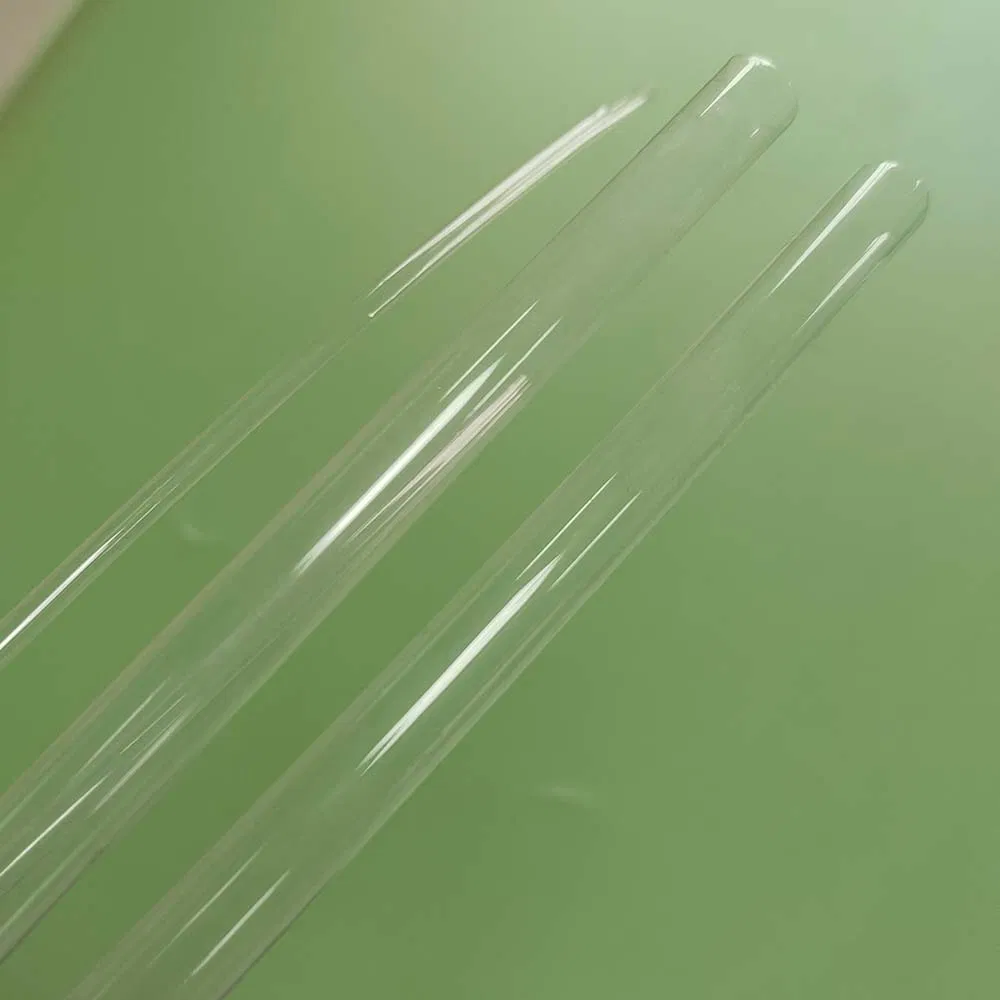

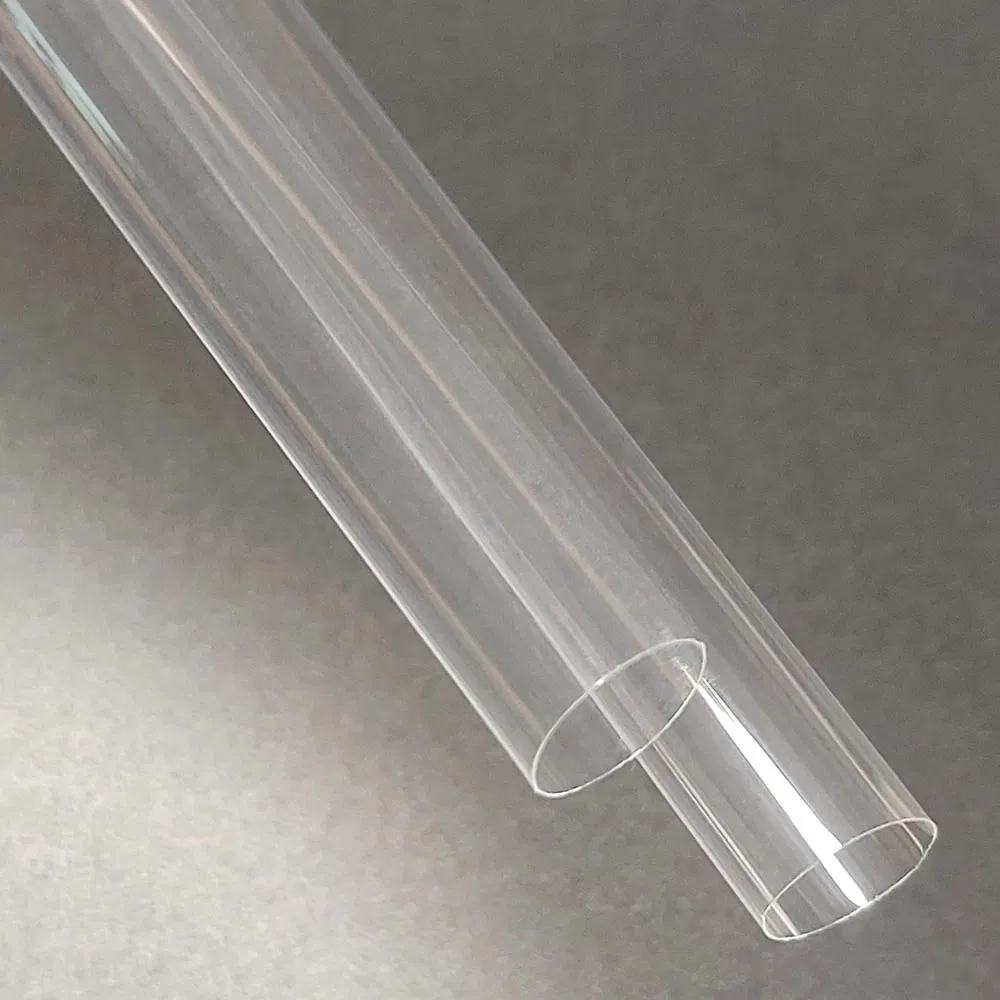

Medical Thick Wall FEP Tubing Plastic Tube Transparent

1 / 5

Medical Thick Wall FEP Tubing Plastic Tube Transparent

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.: thin fep tube

Tensile Strength: 19~22 MPa

Working Temp: -70c~+200c

Usage: Insulation, Anti-Corrosion

Color: Clear

Thickness: 0.04mm-0.1mm

Certifications: ISO 9001, ISO 13485

Feature: Non-Stick, Non-Toxic

Application: Chemical, Medical, Electrical, Food Industries

Production Time: 15~25 Days

Packaging & Delivery

Package Size: 13.00cm * 13.00cm * 105.00cm

Gross Weight: 2.000kg

Product Description

Ultra thin wall FEP PTFE straight smooth tubing

Customized sizes available for thickness, color, and length to meet exact requirements.

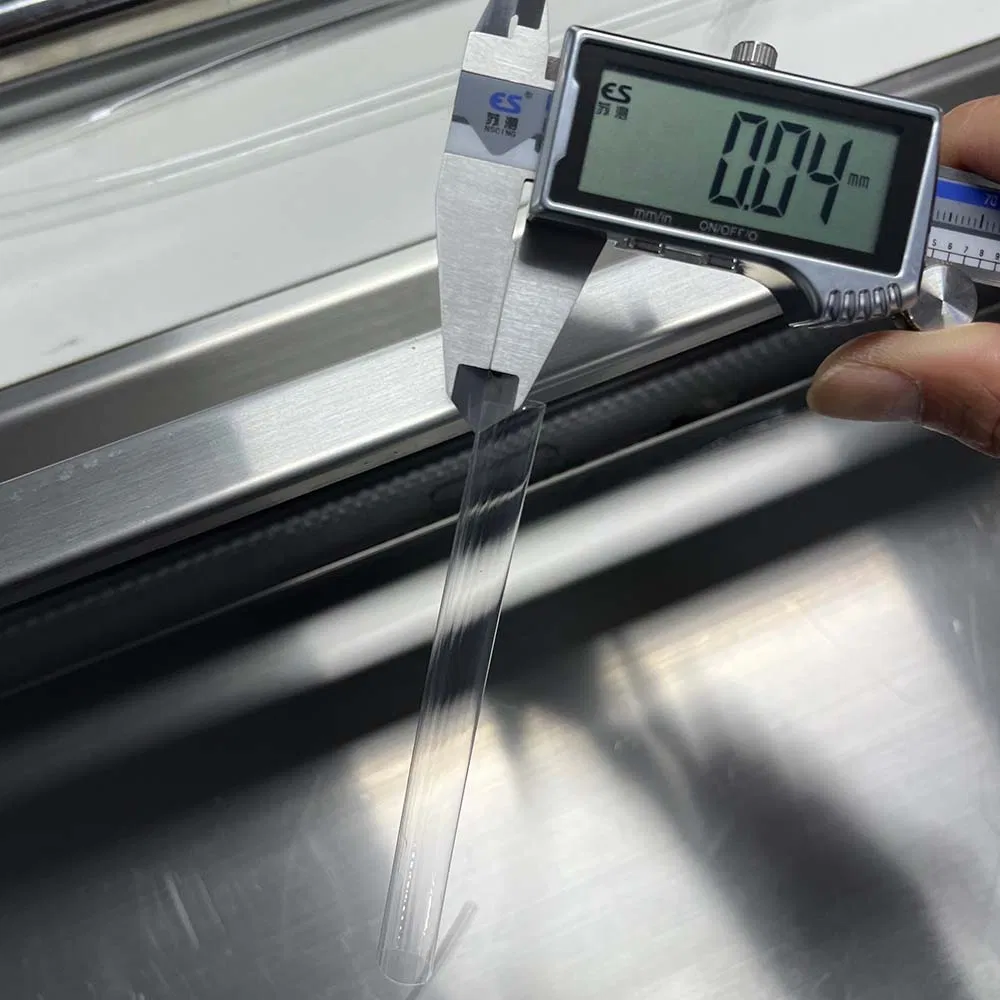

Industry-leading thin wall capability: Minimum thickness starts from 0.04mm.

Superior properties: Non-stick, non-toxic, high insulation, and anti-corrosion features.

Wide temperature resistance: Operates reliably between -70°C and +200°C.

Chemical stability: Resistant to most chemicals, including strong alkalis and acids.

Technical Data

Specifications	FEP	PTFE	PFA
Chemical Resistance	Excellent	Excellent	Excellent
Density	2.15 g/cm3	2.16~2.18 g/cm3	2.14~2.16 g/cm3
Water Absorption	<0.03%	<0.01%	<0.03%
Elongation	250%~330%	200~450%	280~400
Tensile Strength	19~22 MPa	20~45 Mpa	27~35 Mpa
Hardness Durometer	55 Shore D	50~65 Shore D	55~60 Shore D
Coefficient of Friction	0.05	0.02~0.1	0.04~0.06
Dielectric Strength	500~600 V/mil	480 V/mil	500 V/mil
Work Temperature	-70~+200ºC	-70~+260ºC	-70~+260ºC

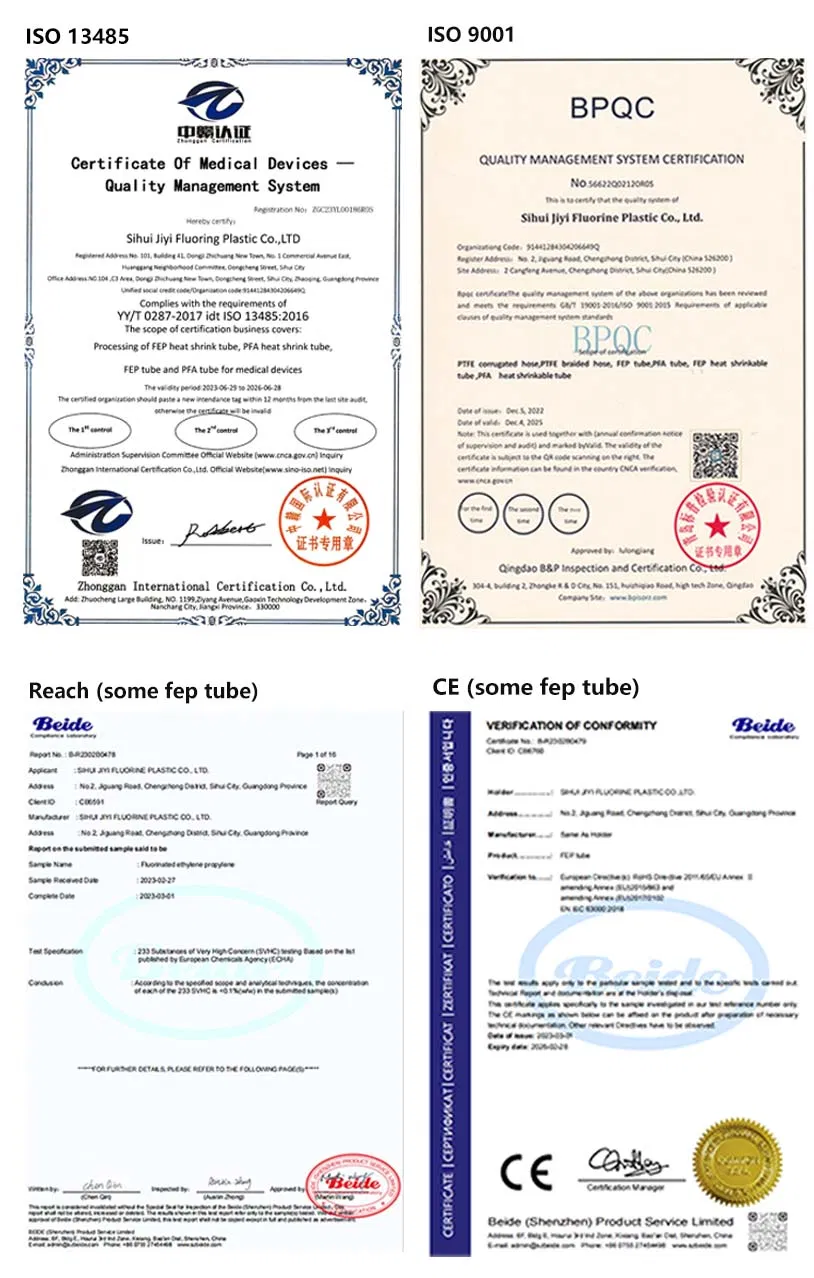

Certifications

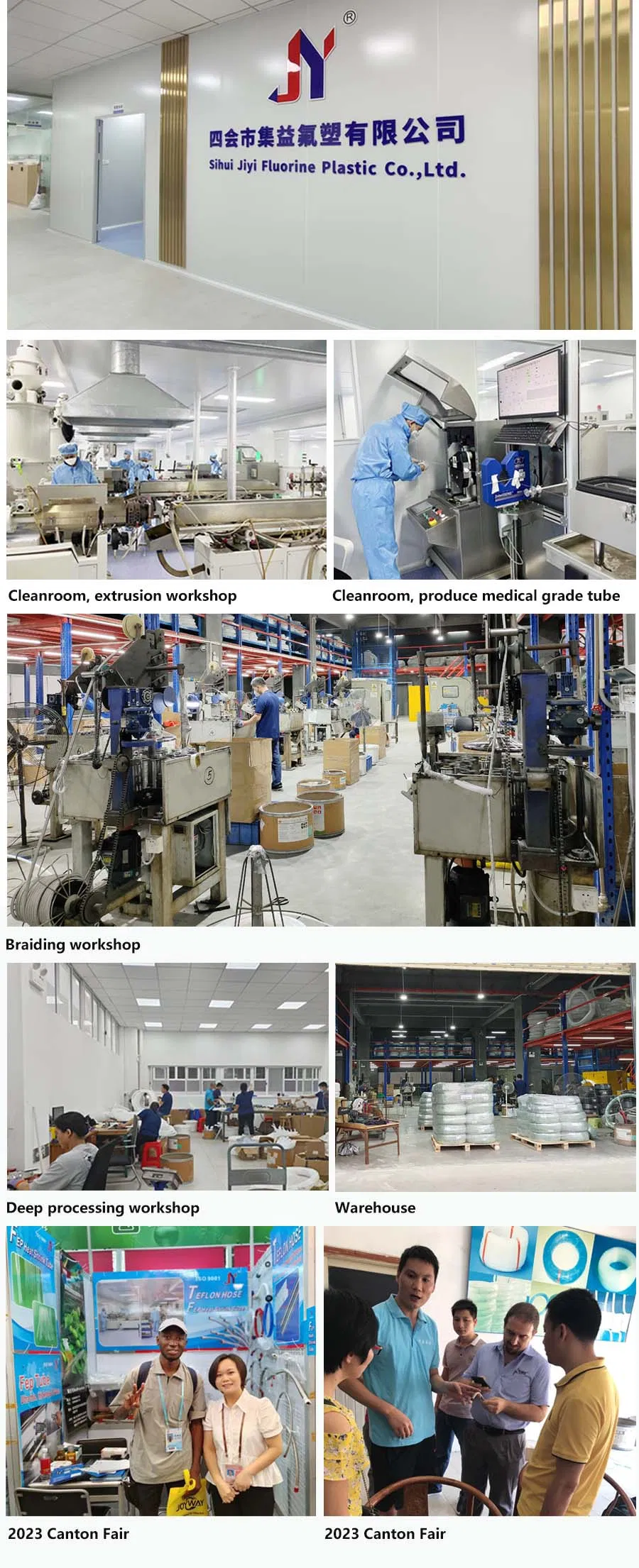

Manufacturing Profile

Established manufacturer specializing in fluorine plastics since 2014.

Equipped with 2 professional cleanrooms for medical and food grade production.

Certified to ISO 9001 and ISO 13485 quality management standards.

Expertise in producing high-performance PTFE, FEP, and PFA tubing.

Frequently Asked Questions

Q: What is the thinnest wall thickness available for FEP tubing? A: We can offer an ultra-thin wall thickness starting from 0.04mm.

Q: Is this tubing safe for medical and food applications? A: Yes, the tubing is non-toxic, non-stick, and produced in cleanrooms. We hold ISO 13485 certification for medical device quality management.

Q: What is the operating temperature range for FEP tubes? A: FEP tubing can operate effectively in environments ranging from -70°C to +200°C.

Q: How does FEP compare to PTFE in terms of transparency? A: FEP is generally more transparent (clear) compared to PTFE, making it ideal for applications where fluid monitoring is required.

Q: Can the tubing resist strong acids? A: Yes, it offers excellent chemical resistance to most chemicals, including strong acids and alkalis.

Q: What is the typical production lead time? A: The standard production time is between 15 to 25 days depending on the order volume and customization requirements.
