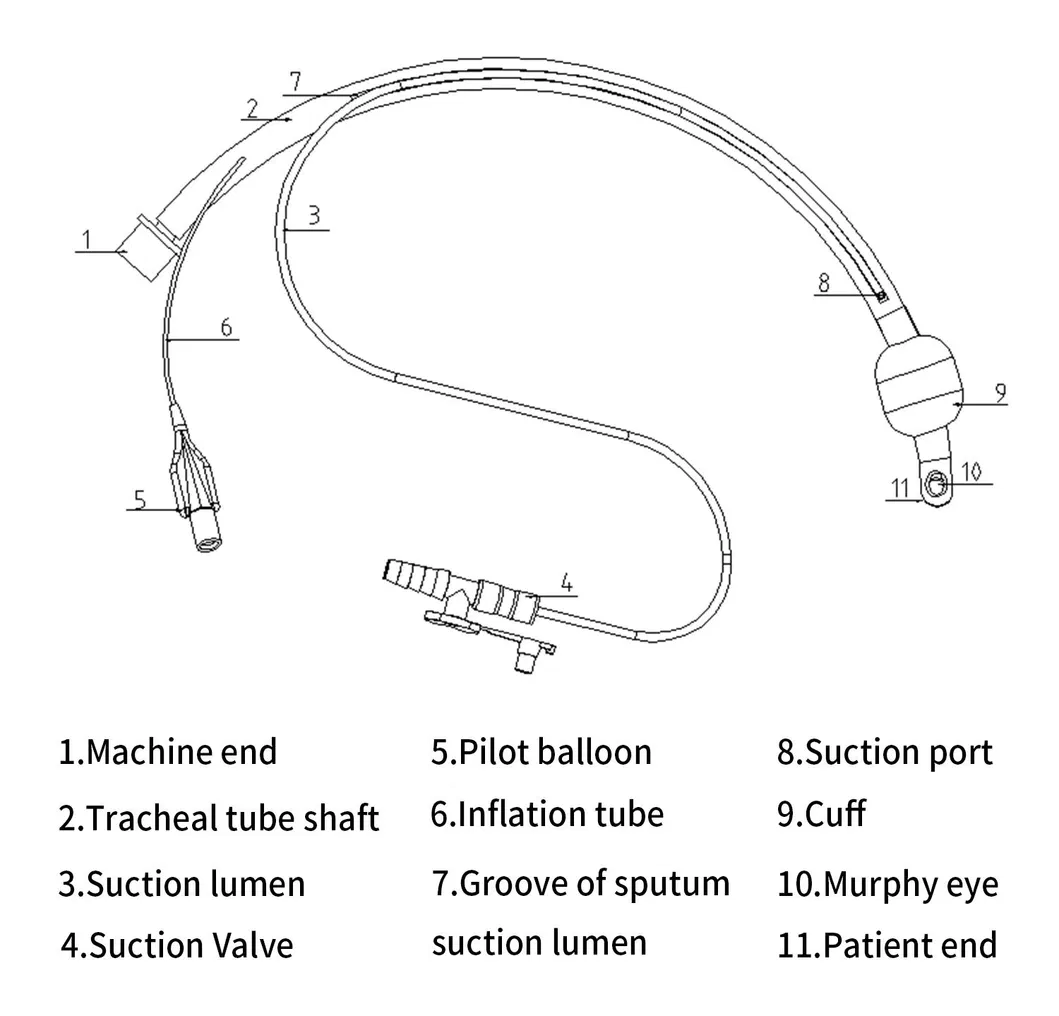

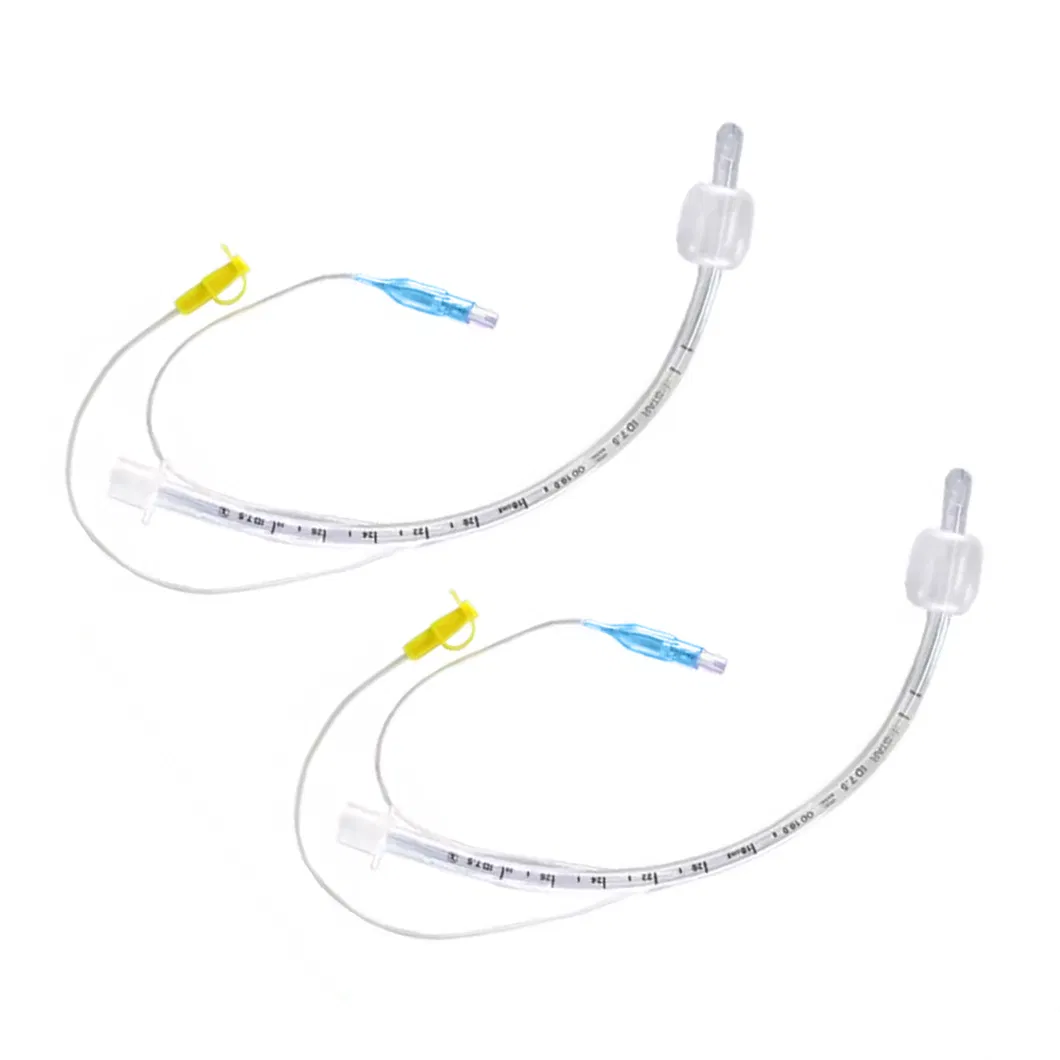

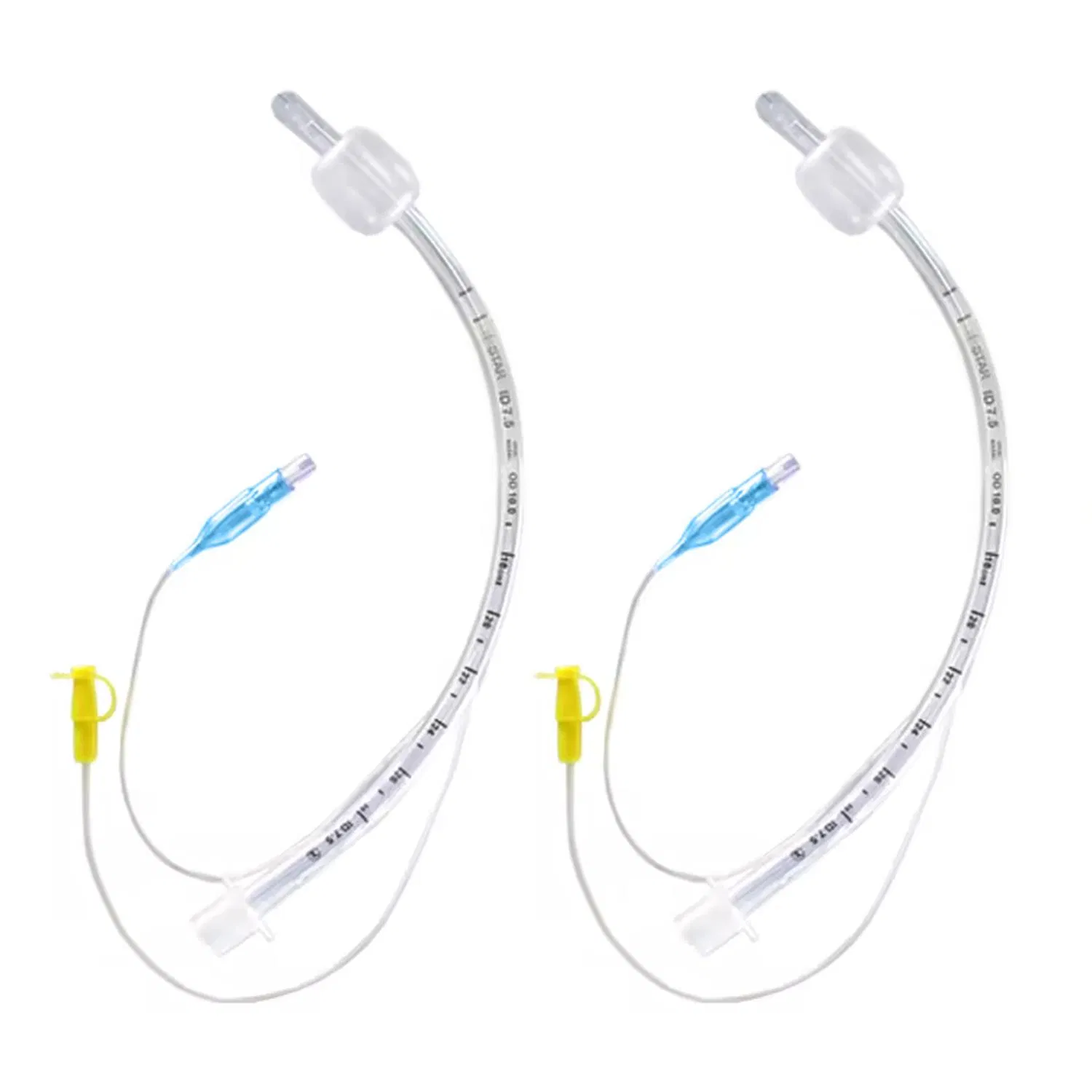

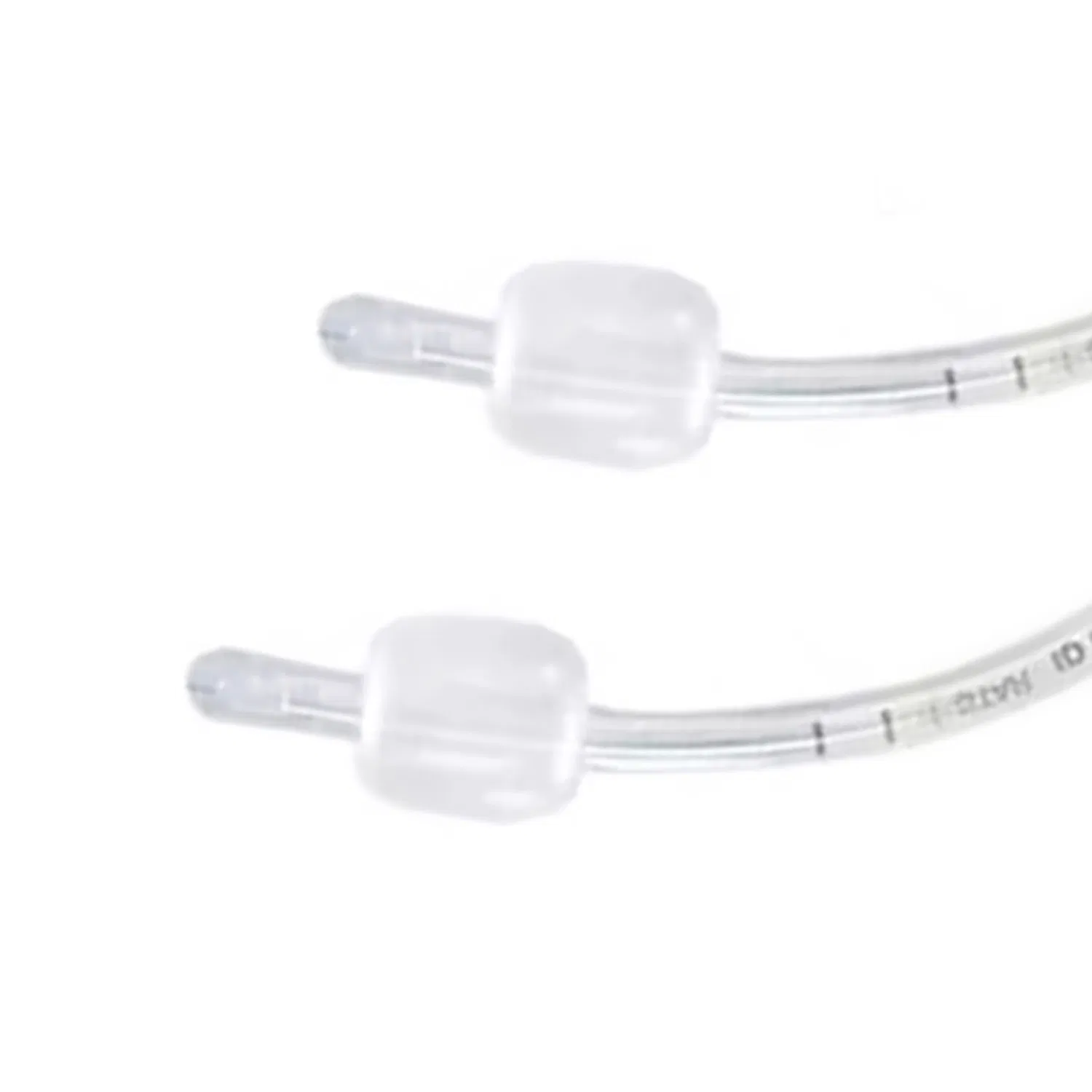

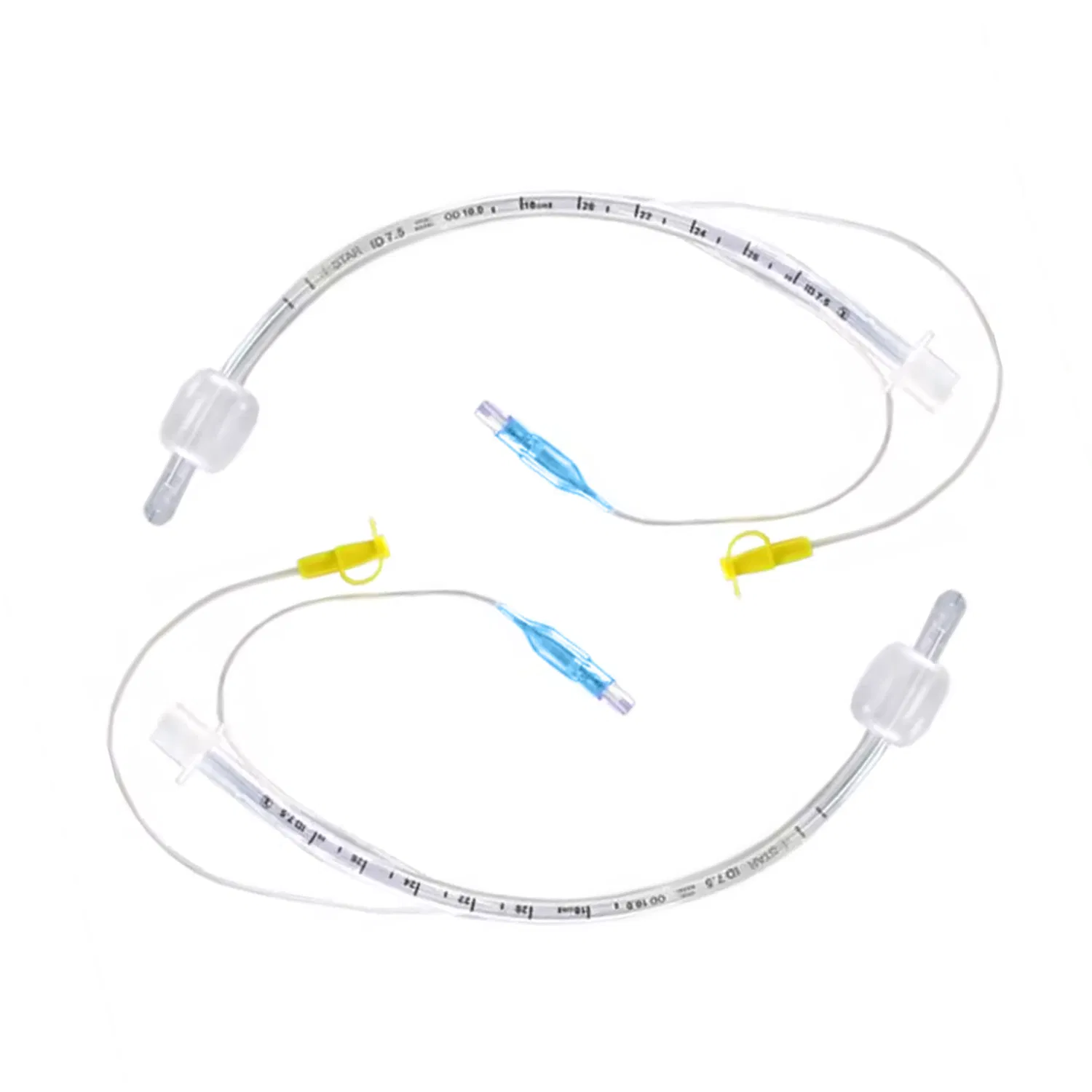

The Suction type Endotracheal tube is a medical device. It is intended for oral or nasal intubation and for airway management and clearing secretions in the upper respiratory tract. The endotracheal tube is sterile and designed for single-use only to prevent infections.
| Specifications | Designated Size (ID) mm | Outside Diameter mm | Cuff Diameter mm | Min. Length mm |
|---|---|---|---|---|
| Cuffed 6.5mm | 6.5 | 8.8 | 22 | 290 |
| Cuffed 7.0mm | 7.0 | 9.4 | 22 | 300 |
| Cuffed 7.5mm | 7.5 | 10.0 | 24 | 310 |
| Cuffed 8.0mm | 8.0 | 10.7 | 26 | 320 |
| Cuffed 8.5mm | 8.5 | 11.3 | 26 | 320 |
| Cuffed 9.0mm | 9.0 | 12.0 | 28 | 320 |

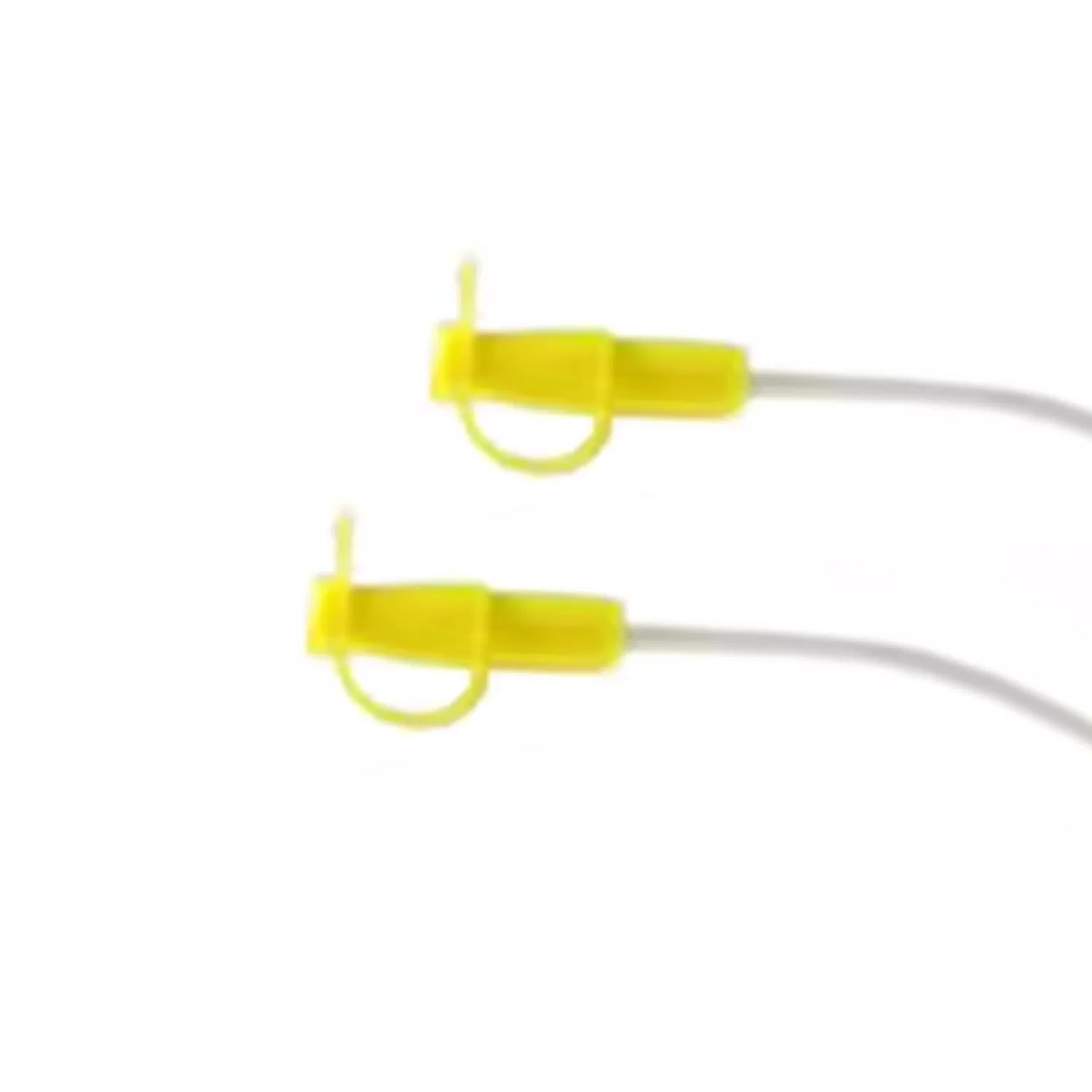

Intended Purpose: The Endotracheal tube with suction lumen is intended for insertion into the trachea to establish and maintain a patent airway and ensure adequate gas exchange. The suction lumen allows for clearing secretions in the upper respiratory tract.
Usage Steps:
Contraindications: Throat edema, acute trachea inflammation, tracheal compression, severe bleeding, or cervical spinal injuries.
